1. Product Overview

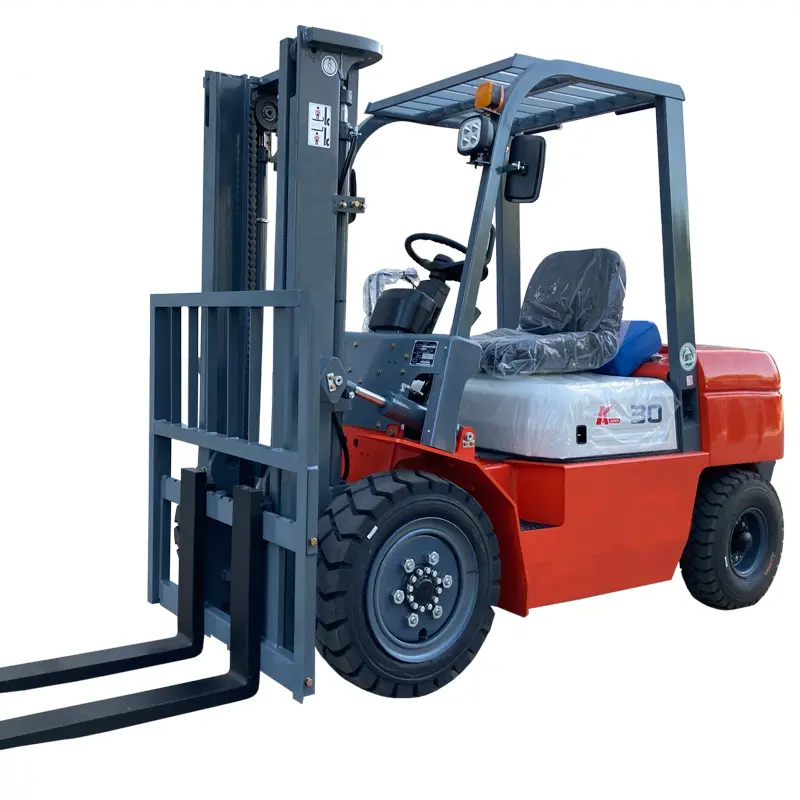

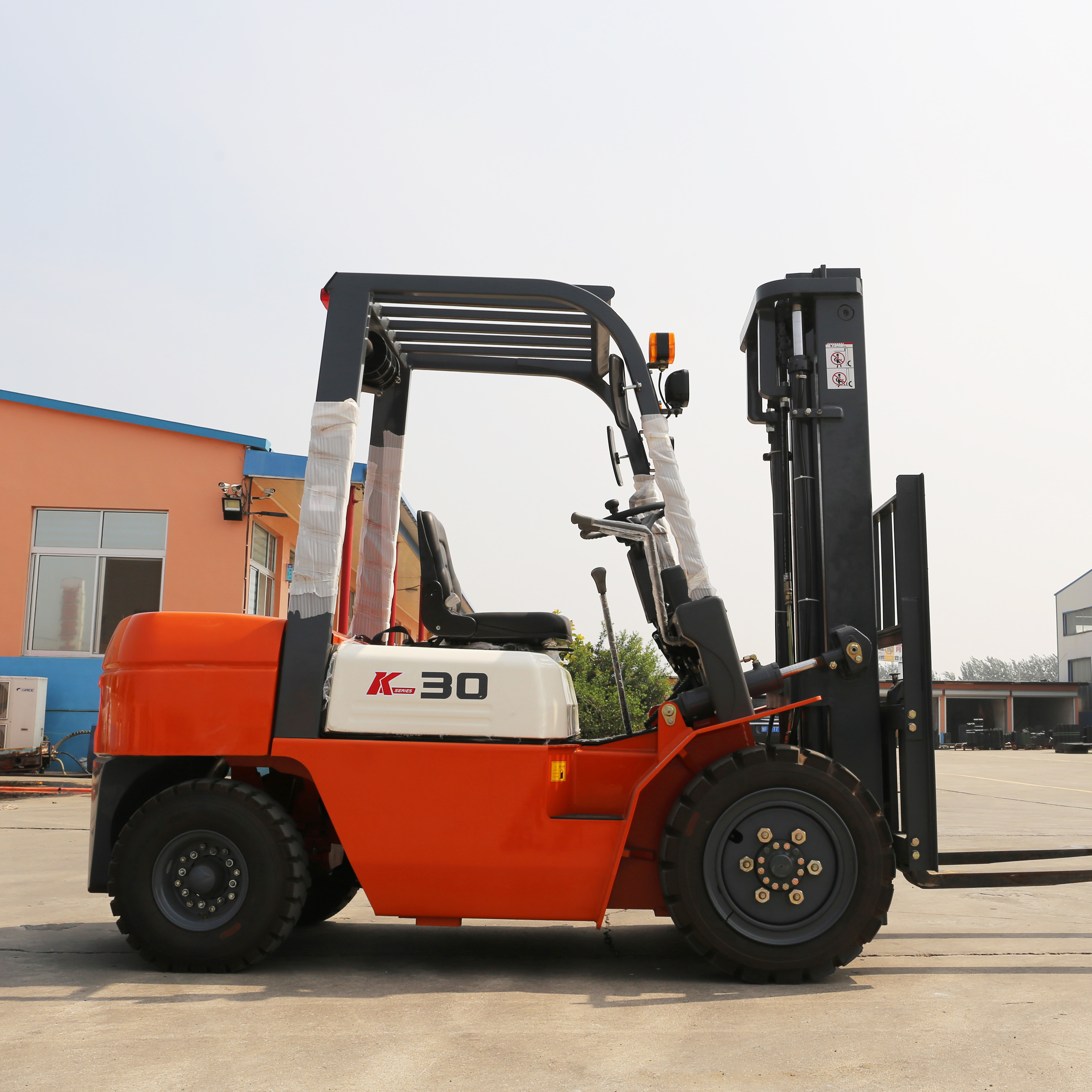

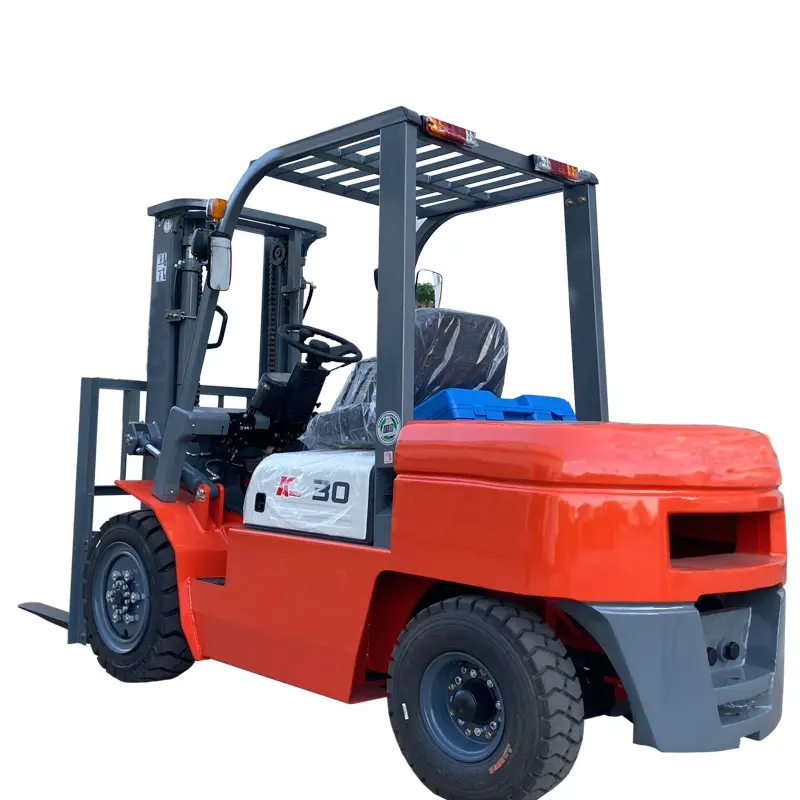

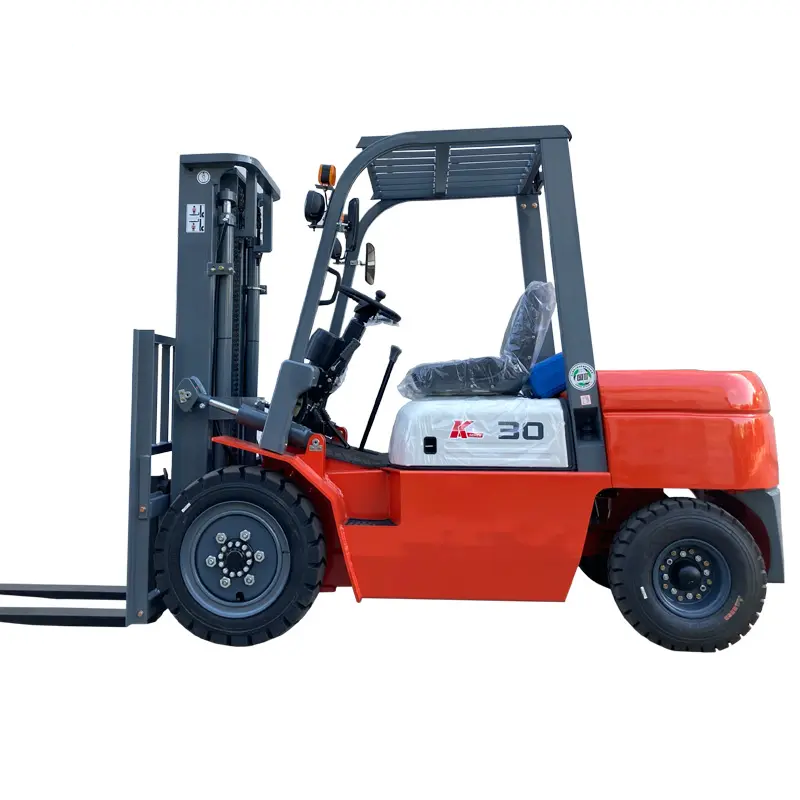

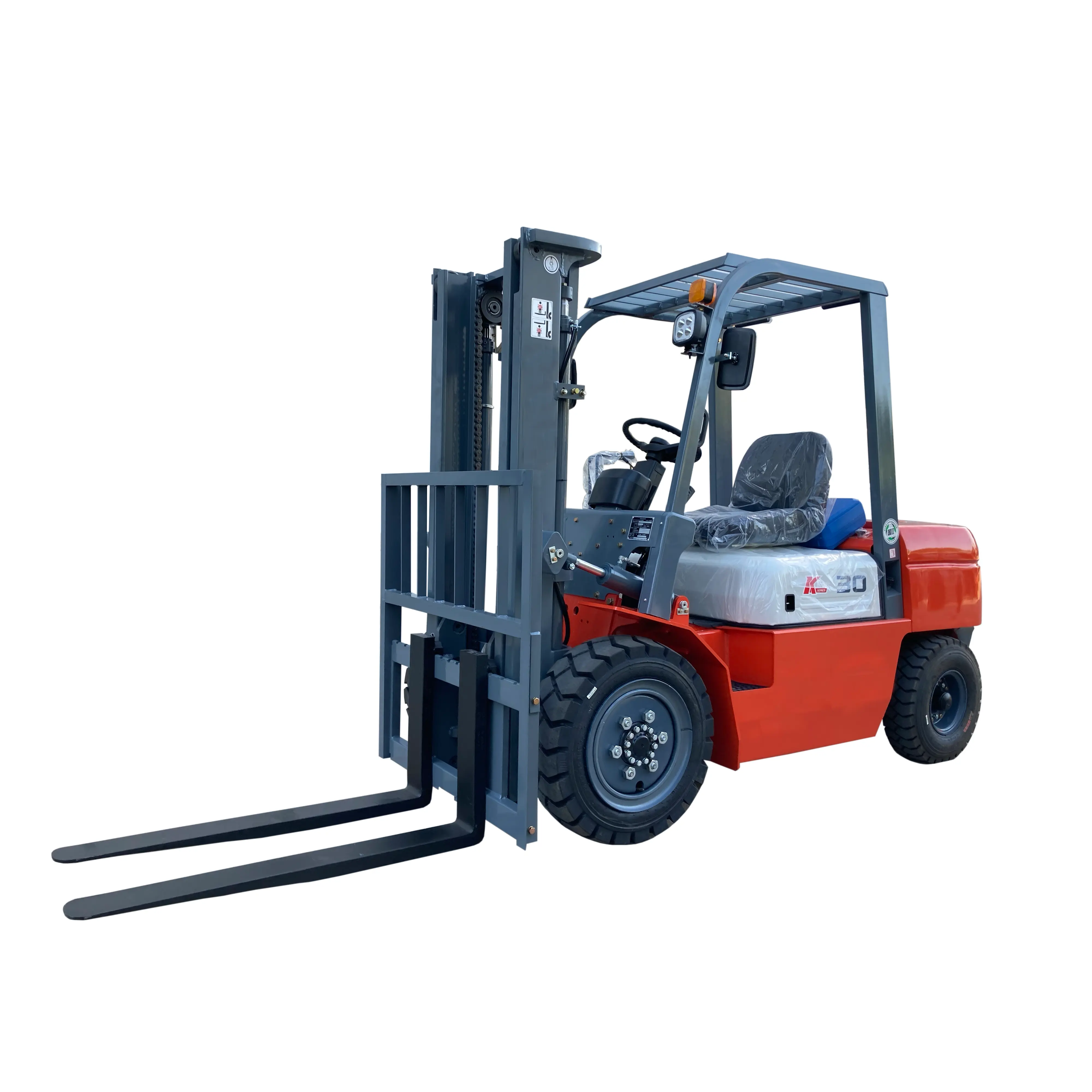

Lovin's Diesel Hydraulic Forklift 3 Ton, diesel forklift is a widely used material handling equipment in logistics, warehousing, and industrial production. Equipped with a high performance diesel engine. With outstanding load capacity, stability, and durability, it is an ideal choice for medium/short-distance logistics operations.
2. Technical Specifications
Rated Load Capacity: 3000 kg
Load Center Distance: 500 mm
Max Lifting Height: 3000-6000 mm (customizable)
Engine Model: Euro III/China National III Emission Standard Diesel Engine
Drive Type: Rear-wheel drive
Tire Options: Solid/Cushion Tires
Mast Tilt Angle: 6° forward / 12° backward
Travel Speed: 20 km/h (unloaded), 18 km/h (loaded)
3. Key Features
1. The forklift drive equipment adopts a static pressure transmission system, which can achieve stepless speed change.
2. The vehicle's engine requires a relatively low rotational speed to ensure high torque at low speeds and a small adjustment rate.
3. The transmission system of the vehicle can adjust the torque and speed of the engine under different driving conditions, ensuring that the vehicle has appropriate traction force and speed, and enabling the engine to operate within the most favorable operating range as much as possible.
4. It can cut off the power transmission from the internal combustion engine to the driving vehicle's driving wheels, so that the internal combustion engine can drive without load.
5. It is required that the forklift's steering be light, flexible and have good maneuverability
6. The braking system adopts a fully hydraulic power braking system to ensure its safety and reliability.
4. Applications
Logistics: Pallet loading/unloading, high-level rack access
Manufacturing: Material transfer on production lines
Ports: Cargo handling inside containers
Construction Sites: Transportation of steel, cement, and building materials
5. Optional Configurations
Side-shifting forks
Custom fork lengths (1070-1220 mm)
Cold storage version (-30℃ capability)
Bluetooth data transmission system
