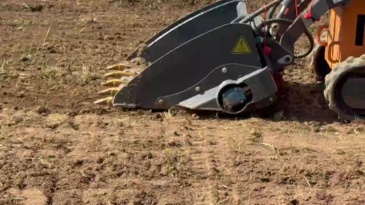

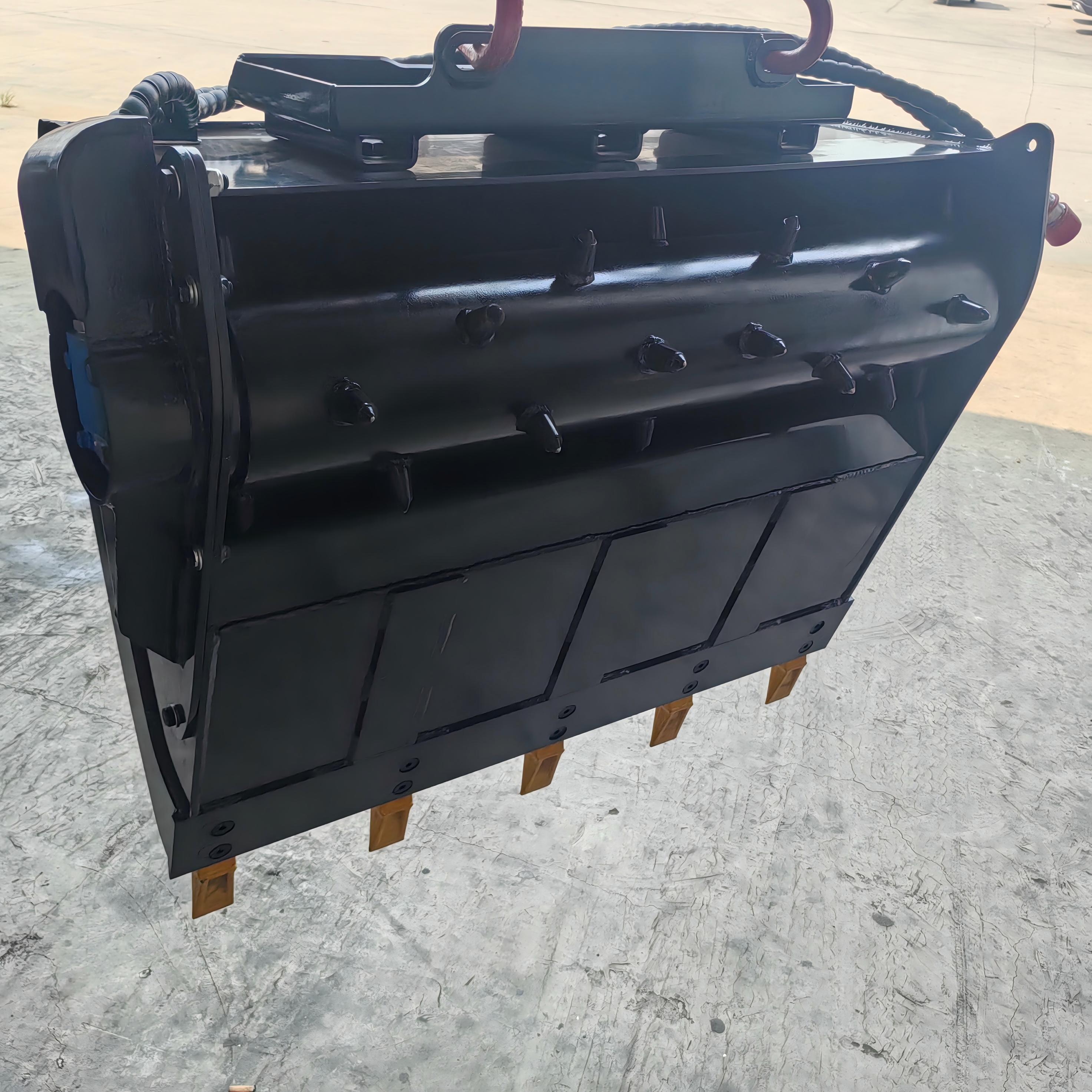

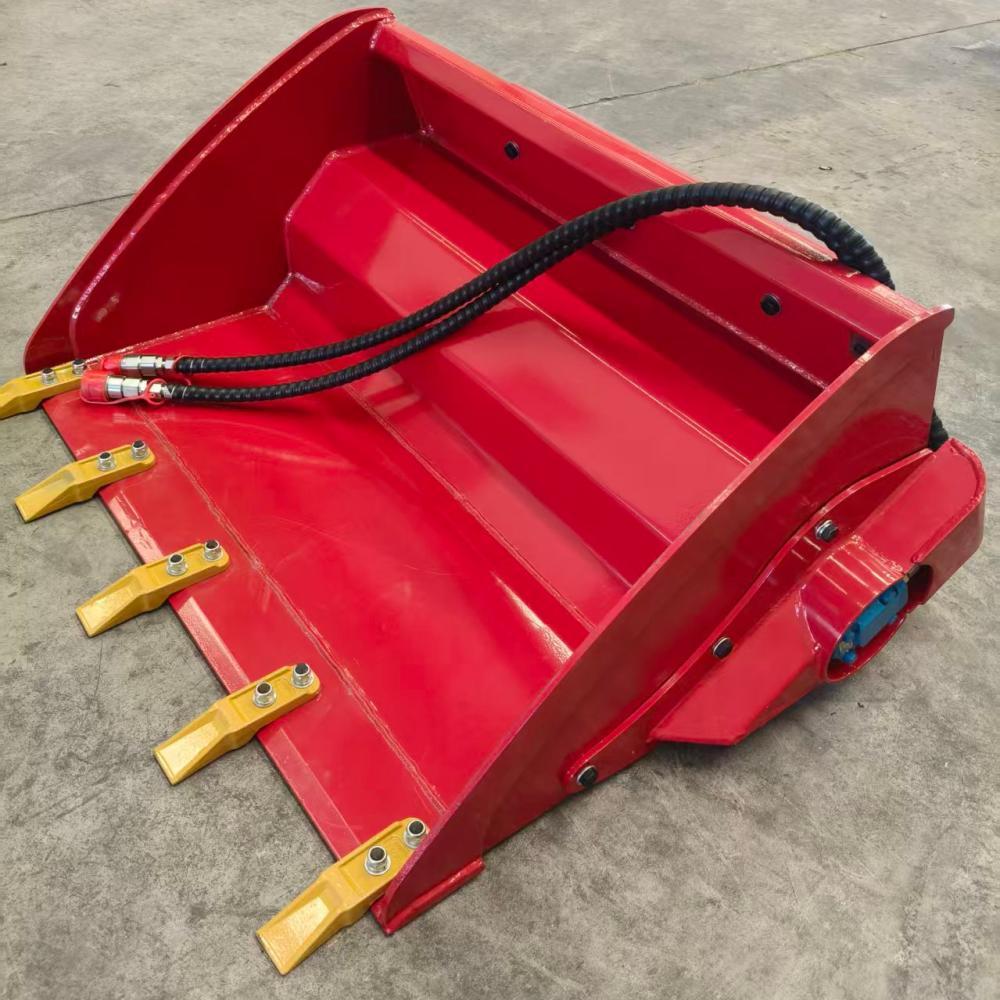

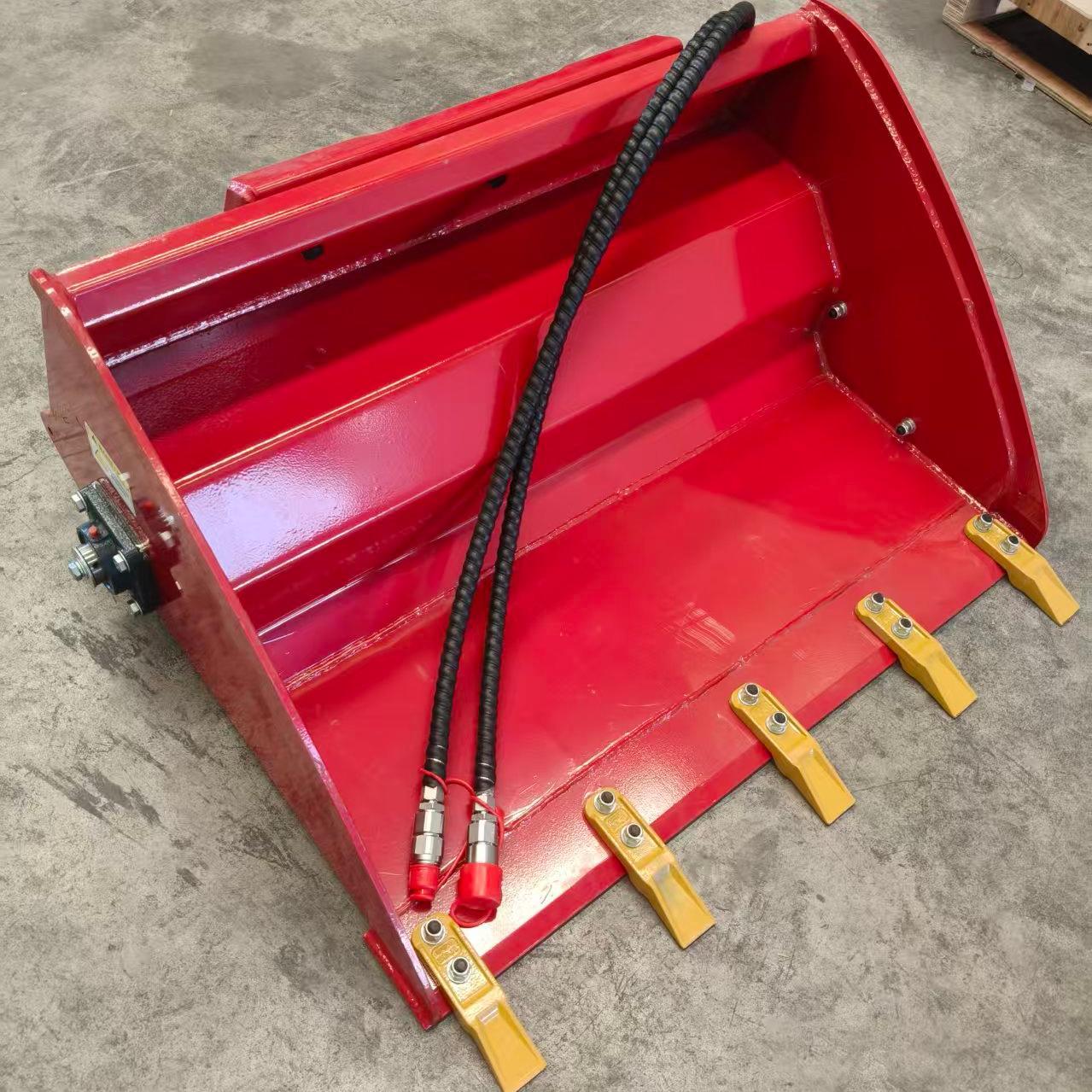

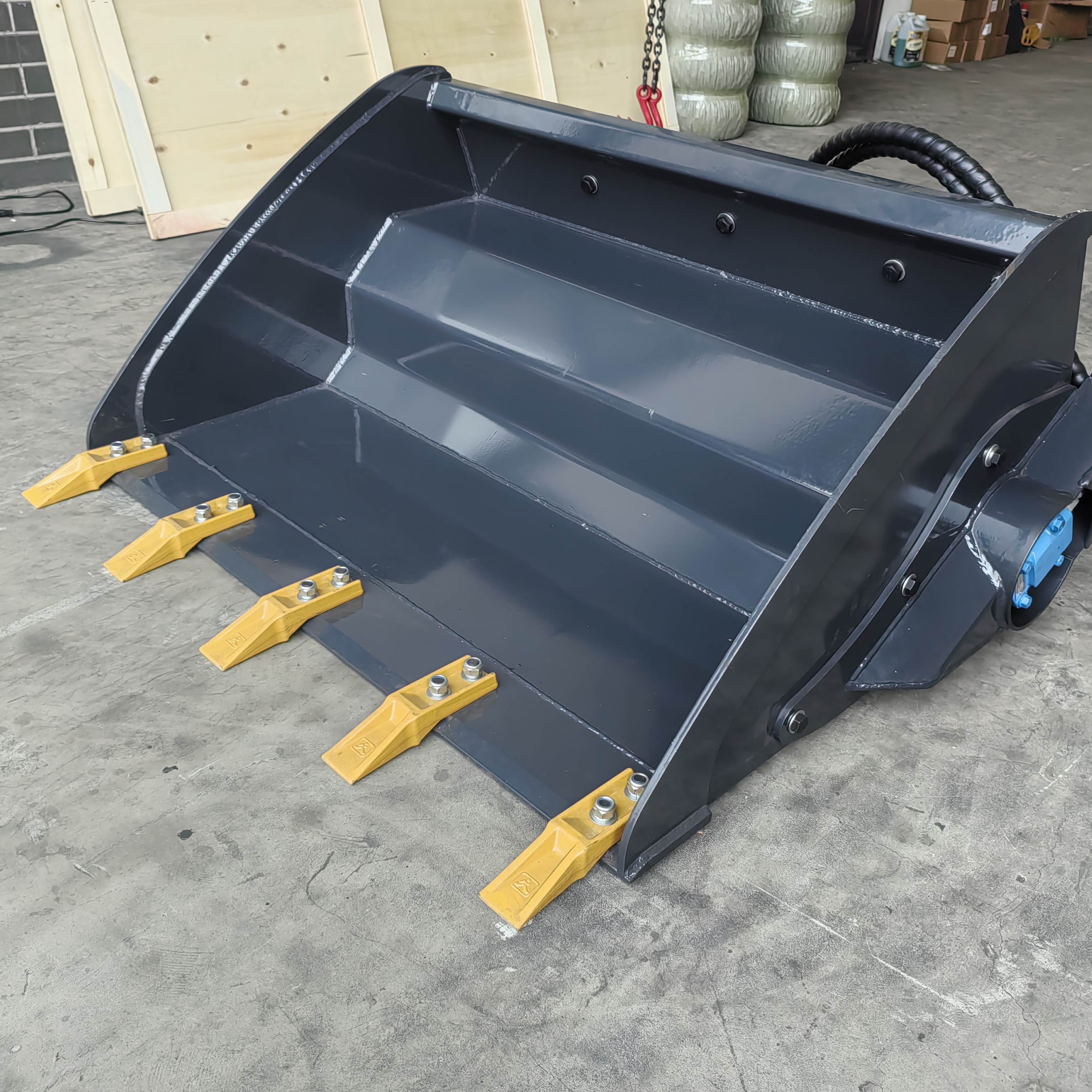

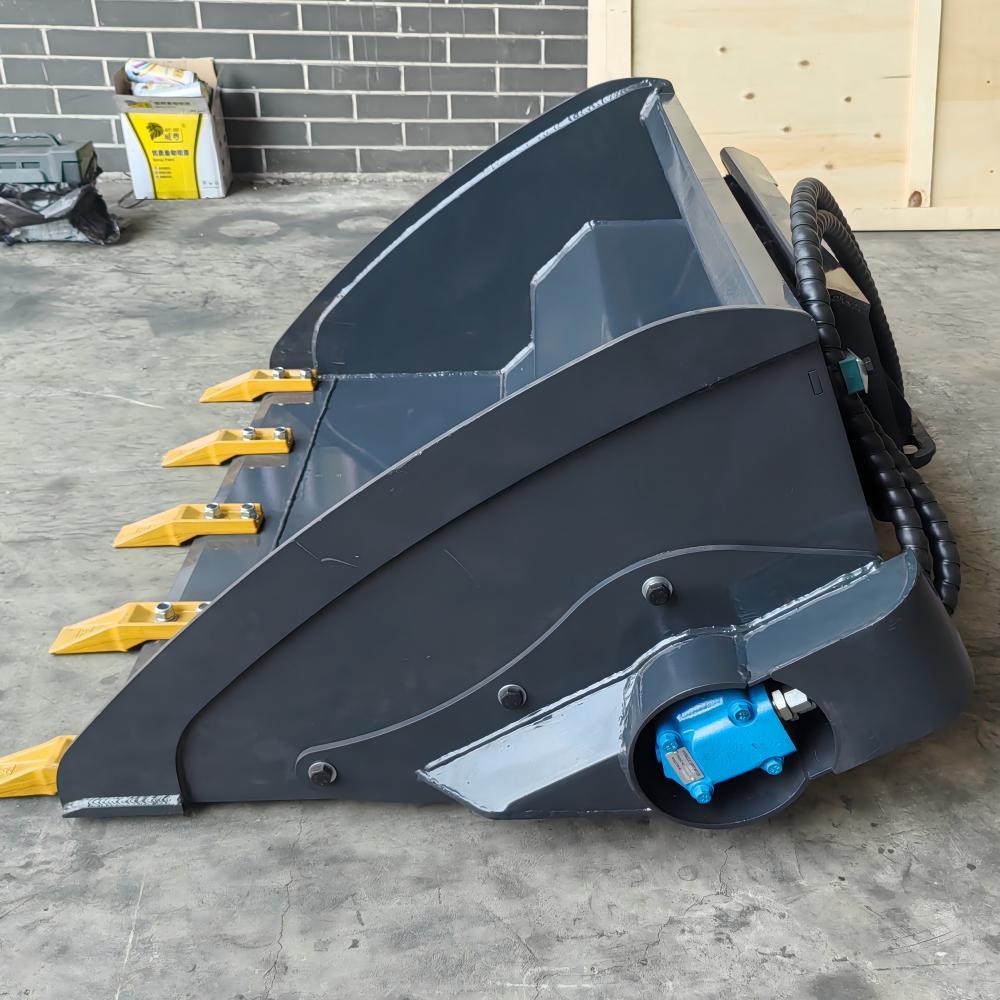

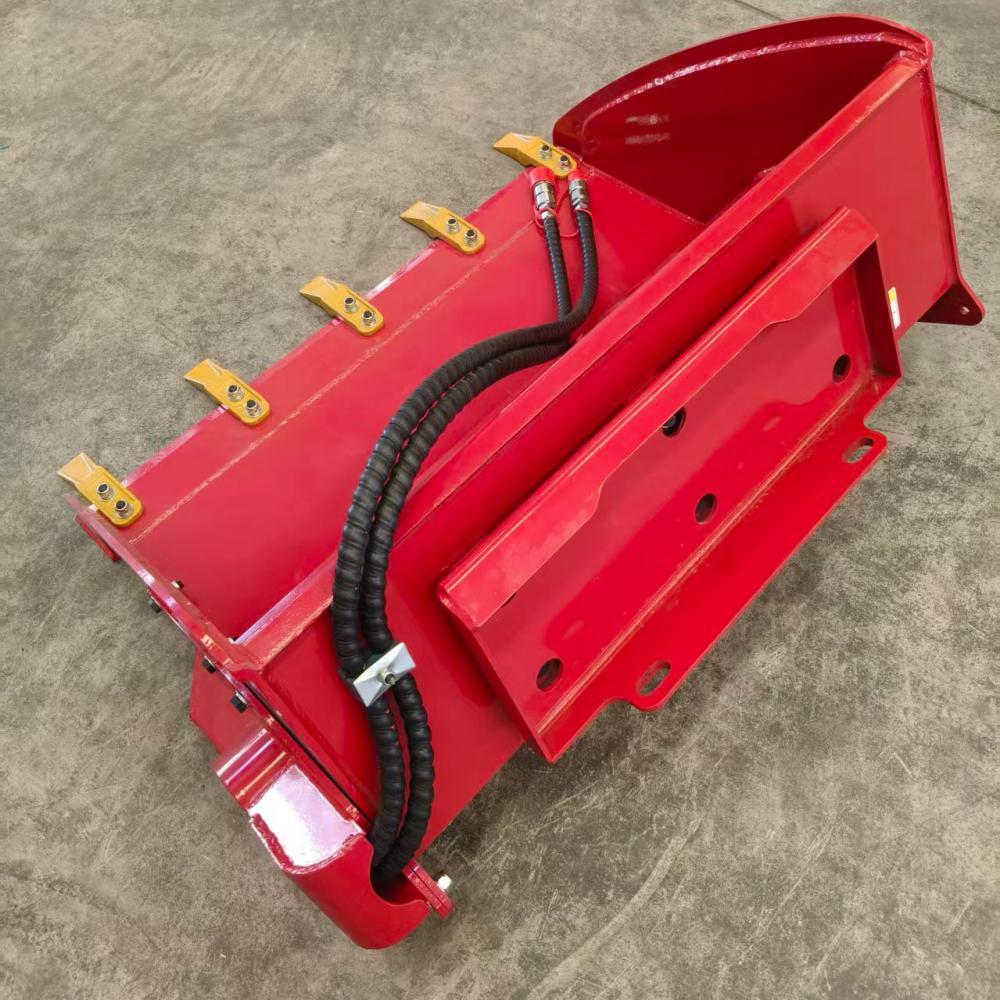

Hydraulic Bucket with Soil Conditioner for Full Size Mini Skid Steer Loaders
Transform your mini skid steer loader into a versatile land preparation powerhouse with our premium Hydraulic Bucket with Integrated Soil Conditioner. Engineered for professional landscapers, contractors, and property owners, this attachment combines robust digging and material handling capabilities with advanced soil conditioning technology—all in one compact, high-performance package.
| Hydraulic bucket with Soil Conditioner |
|
|
|
|
|
| Model |
HM015236 |
HM015242 |
HM021960 |
HM021972 |
| Total Length A(mm) |
1130 |
1280 |
1300 |
1600 |
| Total width B(mm) |
950 |
950 |
950 |
950 |
| Total height C(mm) |
550 |
550 |
650 |
650 |
| Weight（Kg） |
184 |
198 |
370 |
415 |
| Working width(mm) |
950 |
1100 |
1220 |
1525 |
| Capacity（m³） |
0.25 |
0.3 |
0.45 |
0.52 |
| Rated flow rate(L/Min) |
30～50 |
30～50 |
50-80 |
60-80 |
Product Overview
Our Hydraulic Bucket with Soil Conditioner is specifically designed to fit full-size mini skid steer loaders, delivering exceptional compatibility and seamless integration with all major brands. Whether you're preparing seedbeds, leveling terrain, removing debris, or mixing soil amendments, this dual-function attachment eliminates the need for multiple tools, saving you time, labor, and equipment costs.
Key Features
The heavy-duty hydraulic system provides precise bucket control, allowing operators to dig, scoop, dump, and grade with confidence. The integrated soil conditioner features durable rotating tines or blades that pulverize, aerate, and level soil in a single pass, creating the ideal finish for sod installation, gardening, or construction prep. Constructed from high-grade steel with reinforced wear edges, this attachment withstands the toughest conditions while maintaining long-term reliability.
Available Sizes
We offer five width options to match your specific job requirements and machine capacity:
-
36 Inch – Perfect for tight spaces, narrow trenches, and precision work in confined residential areas.
-
42 Inch – Ideal for medium-duty landscaping and light grading tasks with enhanced maneuverability.
-
48 Inch – The versatile all-rounder, balancing productivity and control for general construction and lawn preparation.
-
60 Inch – High-efficiency option for larger properties, commercial landscaping, and broader surface conditioning.
-
72 Inch – Maximum coverage for expansive jobsites, agricultural prep, and heavy-duty professional applications.
Each size maintains consistent hydraulic performance and soil conditioning quality, ensuring uniform results regardless of width selection.
Applications
From backyard renovations to commercial site development, this attachment excels in soil preparation, gravel driveway maintenance, garden bed creation, erosion control, and post-construction cleanup. The hydraulic bucket handles heavy materials like rock, mulch, and debris, while the soil conditioner refines surfaces to professional-grade smoothness.
Why Choose This Attachment?
By combining two essential functions into one attachment, you reduce equipment changeover time and maximize your mini skid steer loader's productivity. The hydraulic quick-attach design ensures fast, secure mounting, getting you back to work in seconds.
Choose the size that fits your needs and experience the difference in efficiency, precision, and durability.
Advanced Carbide Tooth Design
The proprietary pure carbide tooth pattern is specially shaped and positioned to create optimal seedbed sub-base fracture patterns. This unique design promotes superior moisture retention and release—critical factors for successful germination and healthy turf establishment
Versatile Material Control
An adjustable 6-inch polyurethane barrier above the roller allows operators to control the size of material left in the seedbed. Rigid enough for pushing soil, yet flexible enough to let damaging debris pass through, this barrier can be raised to accelerate soil drying or opened for muddy site conditions
Robust Drive Systems
Available in direct drive configurations for mini loaders, our hydraulic bucket Harley rakes feature motors embedded within the frame and drum for optimal protection from dirt and debris. Heavy-duty bearings and protective hose sleeves ensure longevity in harsh environments
Why Choose Our Mini Skid Steer Hydraulic bucket?
✅ Universal Compatibility – Designed to fit most mini skid steer brands including Dingo, Toro, Ditch Witch, Boxer, Kanga, and Bobcat MT series with standard quick-attach systems
✅ Compact Maneuverability – Access backyards, fenced areas, and confined job sites impossible for full-size equipment
✅ One-Pass Efficiency – Fill low spots, cut high spots, and condition soil simultaneously—reducing project time and labor costs
✅ All-Weather Performance – Effective in wet or dry conditions; adjustable barrier allows adaptation to changing soil moisture
✅ Low Maintenance Design – Protected motors, sealed bearings, and replaceable wear components minimize downtime
Product Advantages
Structural and Functional Design Superiority
Constructed by leading skid steer attachments manufacturers, the Hydraulic bucket combines structural durability with adaptive design features suitable for mini skid steer loaders. The heavy-duty carbide teeth and thick drum wall resist wear from abrasive soil and rock contact, while greaseable drum bearings extend service intervals and lower operating costs. The quick-attach mounting system allows rapid interchange between attachments, enhancing fleet versatility in wholesale procurement models. Reversible end plates expand debris management options critical for variable jobsite conditions, reflecting the modular innovation prioritized by reputable skid steer attachments factory production lines.
Optimized Performance and Operational Efficiency
This attachment delivers consistent soil conditioning performance with minimum operator effort, reflecting the usability emphasis valued by skid steer attachments wholesale clients. Tool-free depth adjustments via independent gauge wheels enable precise soil engagement customization, reducing operational errors and increasing task accuracy. The direct-drive hydraulic motor ensures efficient power utilization, compatible with diverse mini loader flows, and minimizes energy loss during operation. Replaceable carbide teeth and low maintenance design facilitate prolonged operational availability, maximizing ROI for forestry mulcher wholesale networks integrating this product into their equipment portfolios
Use Scenarios
Residential Landscaping and Utility Trench Restoration
In residential landscaping and utility maintenance contexts, the Harley Rake serves a critical role in soil preparation for seedbed conditioning and post-trench grade restoration. It provides precise pulverization of compacted soil and efficient debris separation in tight spaces such as gated yards or along shrub lines. This adaptability aligns with requirements from skid steer attachments manufacturers committed to delivering products compliant with hydraulic flow standards and durable enough for repetitive contract work. Its reversible debris management supports workflow continuity by directing material where needed, integrating smoothly with utility restoration crews needing predictable ground surface conditions.
Golf Course and HOA Grounds Maintenance
For golf course and homeowners association maintenance teams, the attachment enhances site preparation accuracy for turf installation, bunker edge cleanup, and pathway conditioning. Operating under the strict maintenance and aesthetic standards these sectors demand, the Harley Rake offers controlled depth soil conditioning with minimal disturbance to surrounding vegetation. Its compact size allows access in restricted areas, while the tool-free gauge adjustment supports frequent terrain detail adjustments in landscaping workflows. Products sourced from skid steer attachments factory and forestry mulcher wholesale suppliers ensure reliable performance, fostering consistent maintenance cycles and compliance with environmental regulations in managed green spaces.
Frequently Asked Questions (FAQ)
Q: What mini skid steer loader brands is this hydraulic bucket compatible with?
A: Our hydraulic bucket with soil conditioner is engineered to fit most full-size mini skid steer loaders on the market, including but not limited to Bobcat, Ditch Witch, Toro, Vermeer, Boxer, and Ramrod models. It features a universal quick-attach mounting plate designed for standard mini skid steer connections. If you are unsure about your specific machine model, please provide your loader's make and model, and our team will confirm compatibility before purchase.
Q: How do I choose the right bucket width for my needs?
A: The ideal width depends on your typical job scope and machine horsepower. The 36-inch and 42-inch options excel in tight residential spaces, narrow gate access, and precision trenching. The 48-inch size is our most popular choice, offering a balanced mix of productivity and maneuverability for general landscaping. The 60-inch and 72-inch widths are designed for open commercial sites, large property maintenance, and operators who prioritize maximum ground coverage per pass. Ensure your mini skid steer has sufficient lift capacity and hydraulic flow to handle wider attachments effectively.
Q: Does the soil conditioner run off the loader's hydraulics?
A: Yes, the integrated soil conditioner operates using your mini skid steer loader's auxiliary hydraulic circuit. Standard hydraulic quick-connect fittings are included for seamless integration. We recommend a minimum hydraulic flow rate of 8–12 GPM for optimal soil conditioning performance, though the system is designed to function efficiently across a broad range of standard mini skid steer outputs.
Q: Can I use the bucket and soil conditioner functions simultaneously?
A: Absolutely. The dual-function design allows you to dig, scoop, or transport material with the bucket while the soil conditioner tines prepare and level the surface beneath. This simultaneous operation significantly reduces job time by combining material handling and soil preparation into a single pass. Alternatively, you can operate each function independently depending on the task requirements.
Q: What type of soil conditions can this attachment handle?
A: The soil conditioner is built to tackle a wide variety of soil types, including clay, loam, sandy soil, and compacted dirt. It effectively breaks up hardpan, mixes in compost or fertilizer, pulverizes clumps, and creates a smooth, ready-to-plant finish. For extremely rocky or heavily compacted ground, we recommend making multiple passes or reducing travel speed to maximize conditioning effectiveness and minimize wear.
Q: How durable is the attachment? Will it withstand daily commercial use?
A: Durability is a core design priority. The bucket is constructed from high-grade structural steel with reinforced wear edges and skid plates in high-abrasion zones. The soil conditioner tines are made from hardened alloy steel to resist bending and wear. With proper maintenance, this attachment is fully capable of withstanding the demands of daily commercial landscaping, construction, and rental fleet operations.
Q: Is installation difficult? Can I attach it myself?
A: Installation is straightforward and requires no special tools beyond your loader's standard quick-attach system. Simply drive into the attachment, engage the locking pins, and connect the hydraulic hoses to your auxiliary ports. The entire process typically takes under two minutes. Detailed installation instructions and hydraulic connection diagrams are included with every shipment.
Q: What maintenance does this attachment require?
A: Routine maintenance is minimal. We recommend greasing all pivot points and tine bearings every 10 hours of operation. Periodically inspect the bucket cutting edge, soil conditioner tines, and hydraulic hoses for wear or damage. Replace worn cutting edges and tines as needed to maintain peak performance. After use in wet or muddy conditions, hose down the attachment to prevent soil buildup and corrosion.
Q: Can I use this attachment for tasks other than soil conditioning?
A: Yes. While optimized for soil preparation, the hydraulic bucket functions independently as a standard material handling bucket for moving gravel, mulch, sand, and debris. The soil conditioner can also be used to level and finish gravel driveways, prepare arena surfaces, mix and level topsoil, and dethatch lawns when adjusted to the appropriate depth.
