Product Advantages
Structural and Modular Design Enhancements

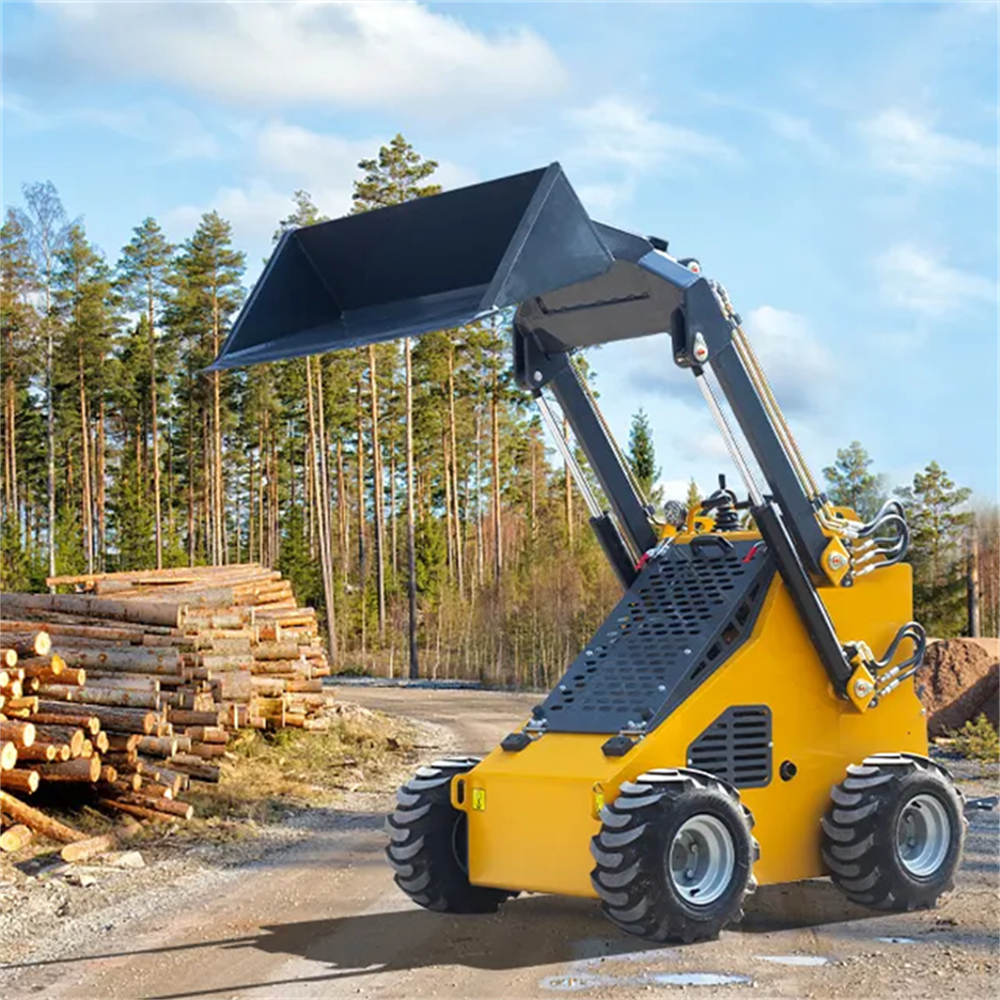

The design architecture of this mini skid steer incorporates a universal quick-attach plate system enabling attachment exchanges in under 30 seconds, a critical feature for minimizing downtime in demanding job sites. Its compact width and foldable safety frame reflect engineering consideration for site accessibility constraints typical in urban or indoor environments. Integration options for rubber tracks or turf tires provide adaptability to diverse surface conditions, which is pivotal for operators needing to preserve ground integrity. As a product from an experienced skid steer manufacturer, its design balances durability with required operational flexibility to enhance machine lifecycle and maintenance efficiency.
Operational Performance and User-Centric Benefits
With its hydraulic flow options tailored to a spectrum of attachment power requirements, this mini skidsteer loader provides consistent, reliable force output required for varied applications. The availability of both stand-on and sit-in control packages affords operational versatility and comfort, which can increase operator productivity during extended shifts. Compact dimensions combined with a high carrying capacity ensure the machine meets intense workload demands while maintaining precise maneuverability. This combination of performance attributes and user-adapted controls reflect a focus on maximizing return on investment for professionals procuring equipment from reputable skid steer manufacturers.
Specifications
|
item
|
Metric system
|
British system
|
|
|
Maximum working height (A)
|
2200mm
|
86.61inch
|
|
|
Maximum pin height (B)
|
1884mm
|
74.17inch
|
|
|
Maximum discharge height (C)
|
1488mm
|
58.58inch
|
|
|
Maximum discharge distance (D)
|
348mm
|
13.7inch
|
|
|
Bucket swing Angle (β)
|
55°
|
55°
|
|
|
Bucket discharge Angle (γ)
|
30°
|
30°
|
|
|
Suction Angle (θ)
|
25°
|
25°
|
|
|
Departure Angle (α)
|
11°
|
11°
|
|
|
Total height (H)
|
1280mm
|
50.39inch
|
|
|
Ground height (F)
|
100mm
|
3.93inch
|
|
|
Wheelbase (G)
|
860mm
|
33.85inch
|
|
|
No bucket length (J)
|
1780mm
|
70.07inch
|
|
|
Total width (W)
|
1200mm
|
47.24inch
|
|
|
Bucket width (K)
|
1190mm
|
46.85inch
|
|
|
Total length (L)(with bucket)
|
2500mm
|
98.42inch
|
|
|
Front turning radius (R)
|
1307mm
|
51.5inch
|
|
|
Engine
|
|||
|
Rated power (KW)
|
19.2KW(26HP) (Runtong brand)
|
||
|
Rated speed (rpm)
|
3600
|
||
|
Noise (Db)
|
≤95
|
||
|
Fuel tank volume(L)
|
28 L
|
||
|
Hydraulic tank volume(L)
|
20 L
|
||
|
Hydraulic system
|
|||
|
System Pressure (Mpa)
|
17MPa=170bar=2465psi
|
||
|
Standard flow(L/Min)
|
25L/min
|
||
|
Traveling pump flow(L/Min)
|
22L/min
|
36L/min
|
|
|
Replenishment pump flow(L/Min)
|
10L/min
|
13L/min
|
|
|
Working system(L/Min)
|
44L/min
|
44L/min
|
|
|
Working hours
|
|||
|
lift(S)
|
4.27
|
||
|
load(S)
|
1.34
|
||
|
landing(S)
|
3.31
|
||
|
Tyre type
|
|||
|
Herringbone engineered tire
|
18*8.5-8
|
||
|
Performance parameter
|
|||
|
Metric system
|
British system
|
||
|
Carrying capacity
|
380Kg(62% tipping load)
|
837.7Lb
|
|
|
Bucket volume
|
0.15 m3
|
5.33ft³
|
|
|
Maximum lifting force
|
550KG
|
1212.5Lb
|
|
|
Maximum lift
|
380 Kg
|
837.7Lb
|
|
|
speed
|
0-5.5 Km/h
|
0-3.4 mlie/h
|
|
|
Operating weight
|
860Kg
|
1895.97Lb
|
|
|
Tractive effort
|
No load: 520KG
|
Full load: 530KG
|
|
|
Angle of climb
|
17degree
|
||
|
Service time (full oil)
|
3-4h
|
||

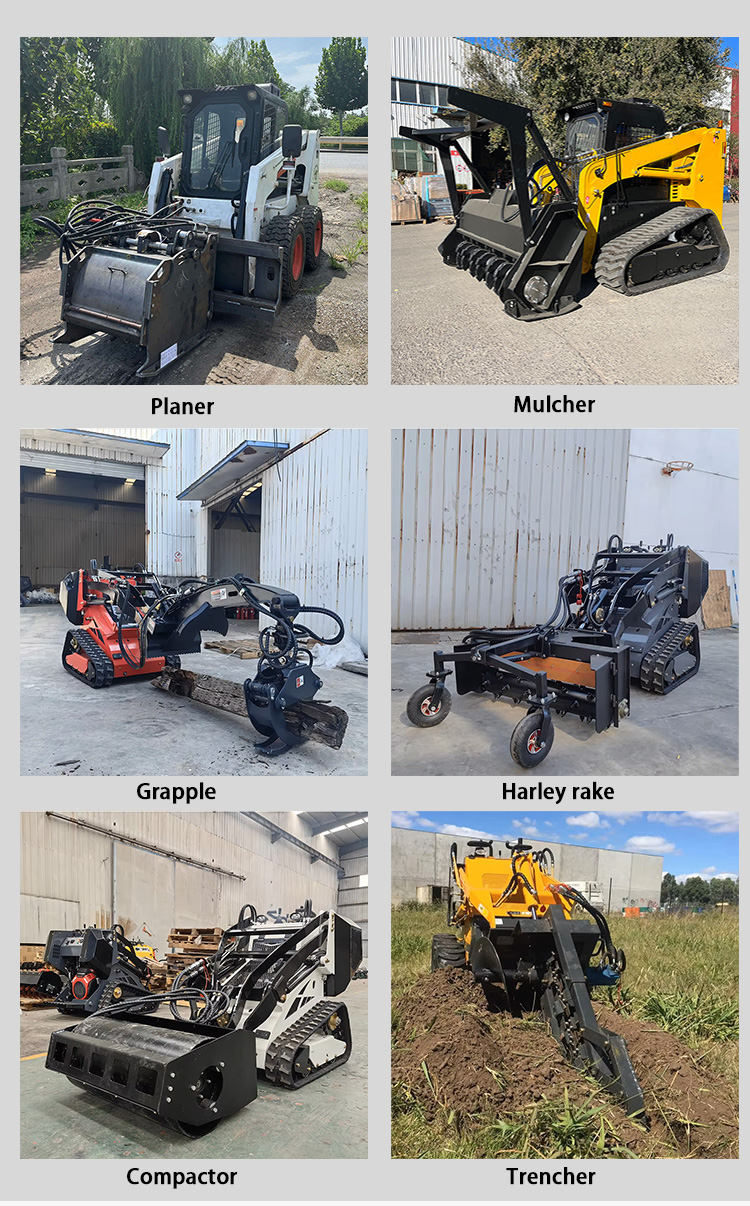

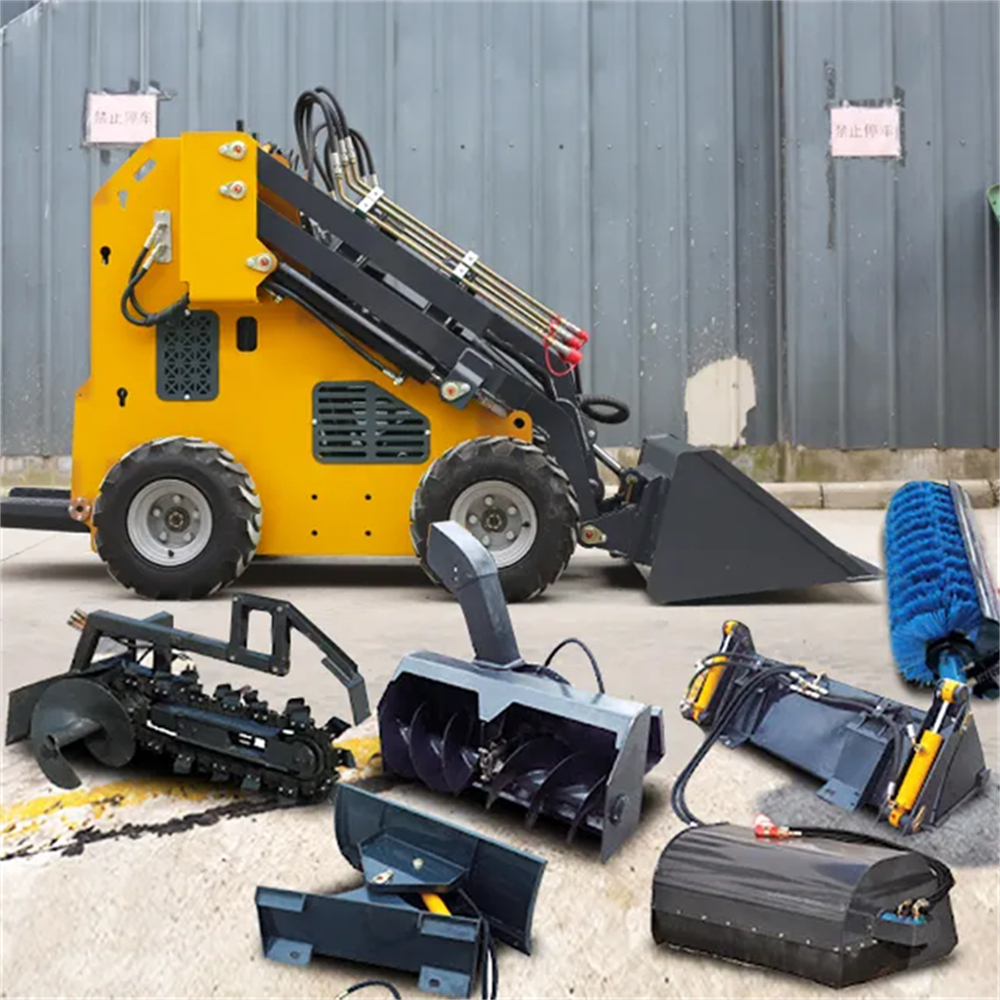

Popular Attachments & Typical Uses
4-in-1 Bucket – dig, grade, grab, and back-drag; perfect for planting beds and trench clean-out .
Auger Drive – drill 6–36 in. holes for fence posts, sign posts, or tree planting .
Power Rake with Tilt – level stone, remove rocks, and prep seedbeds on uneven lawns .
Brush Flail Mower – cut thick grass, invasive brush, and ditch-side weeds on roadside slopes .
Stump Grinder – grind stumps below grade after tree removal in tight backyards .
Pallet Forks – unload pavers, sod rolls, or construction bags inside gated properties .

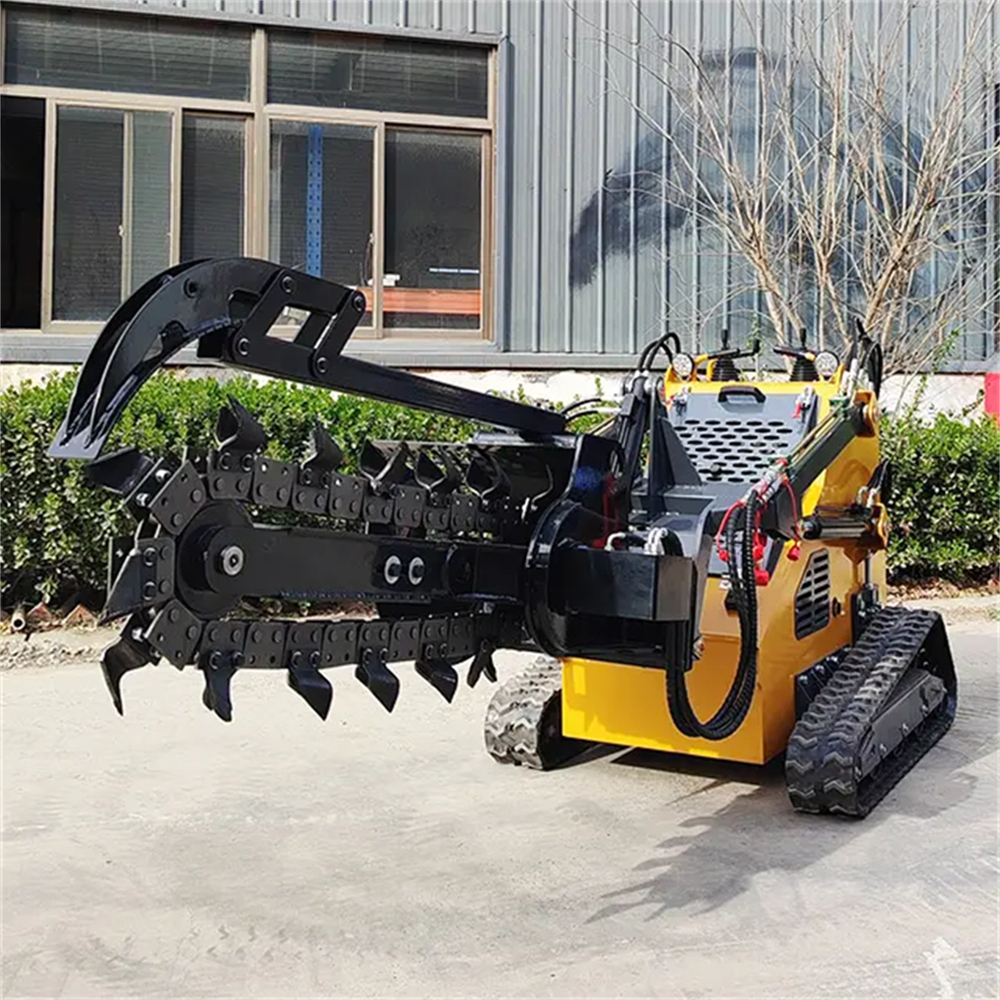

Trencher – cut 4–12 in. trenches for irrigation lines or low-voltage lighting without turf tear-out .
Snow Blade/Pusher – clear sidewalks, driveways, and condo boardwalks faster than walk-behinds .
Grapple Bucket – pick up logs, demolition debris, or storm cleanup piles in parks .
Soil Conditioner (Harley Rake) – pulverize and finish soil for instant turf or synthetic-tile base
Use Scenarios
Landscaping and Confined Space Material Handling
In the landscaping industry, space restraints often limit the use of traditional equipment. This mini skid steer loader is especially suited for environments such as gated properties, residential yards, and urban park maintenance where tight access points exist. Its range of skid steer accessories, including 4-in-1 buckets and grapples, supports earthmoving, debris collection, and material placement. Hydraulic horsepower calibrated for sensitive tasks ensures effective operation of attachments like flail mowers and power rakes, preserving lawn health while performing standard groundskeeping functions. The machine integrates into workflow systems requiring frequent tool changes and precise material placement, minimizing labor and equipment transport time.
Infrastructure Preparation and Utility Excavation
The mini skid steer's compact form factor makes it indispensable in utility landscaping tasks such as trenching for irrigation lines or fence post installation in confined sites. Equipped with auger drives and trenching attachments, the loader performs excavation compliant with safety and dimensional regulations, limiting site disturbance. Its hydraulic system’s capacity supports attachments demanding higher flow rates, enabling efficient excavation and material handling. In urban infrastructure projects or maintenance contracts, the machine’s rapid attachment exchange and fold-down ROPS configuration allow seamless indoor and outdoor transitions, facilitating continuous operations without sacrifice to regulatory compliance or project timelines.
FAQ
What attachments are compatible with the Mini Skid Steer Loader with Kinds of Attachments?
This loader supports multiple attachments through its universal quick-attach plate, including a 4-in-1 bucket, auger drive, power rake, brush flail mower, stump grinder, trencher, and grapple. These versatile tools enhance performance across landscaping, grading, and material handling applications.
Can the Mini Skid Steer Loader operate on sensitive surfaces like lawns?
Yes, the machine offers rubber tracks or turf tires to protect delicate surfaces such as lawns. This feature allows efficient work in landscaping or yard cleanup without damaging the ground, making it suitable for precise site handling in tight or sensitive areas.
How customizable are the hydraulic flow options on this skid steer loader?
Hydraulic flow rates range from 8 to 16 GPM, providing both low- and high-flow settings to accommodate light-duty attachments like rakes and high-demand tools such as planers. This adaptability optimizes performance depending on task requirements, fitting the needs of reliable skid steer operation.
What should industrial buyers know about logistics and service for this loader?
Jining Lovin Construction Machinery CO., LTD ensures professional support and after-sales service for timely equipment delivery and maintenance. As a trusted skid steer manufacturer, the company supplies durable machinery suited to industrial needs, with expert consultation available to assist supply chain coordination.
