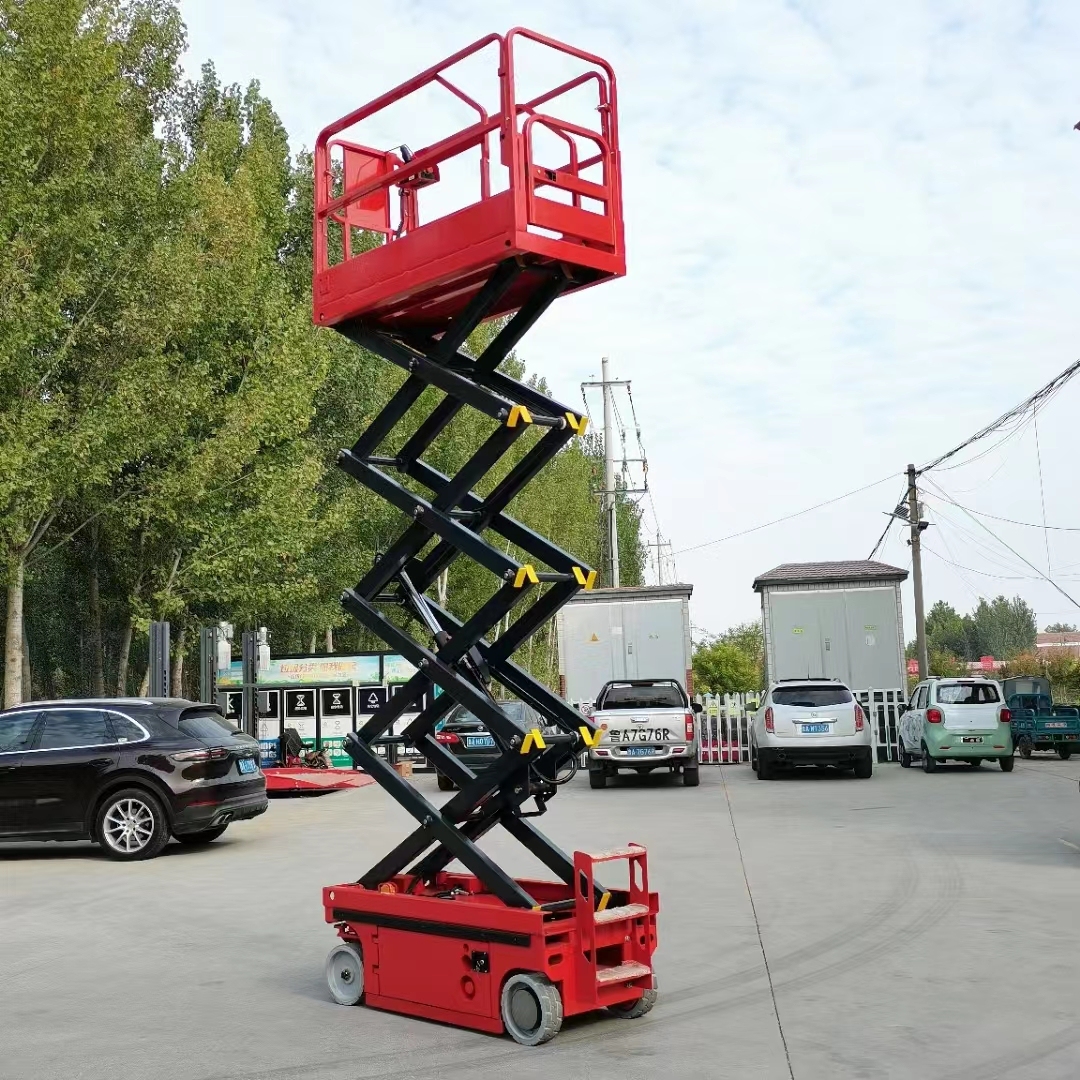

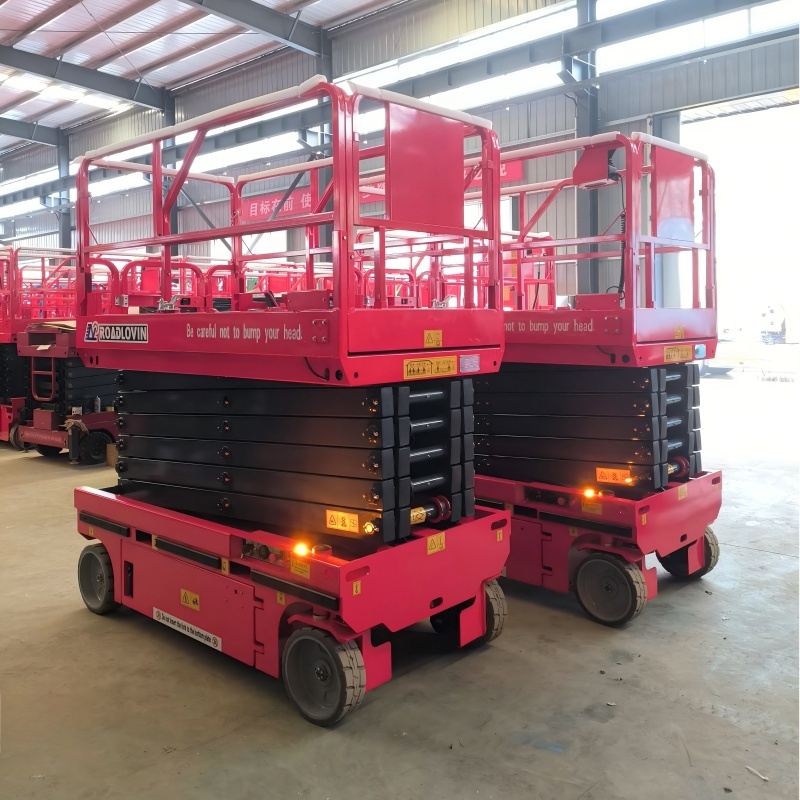

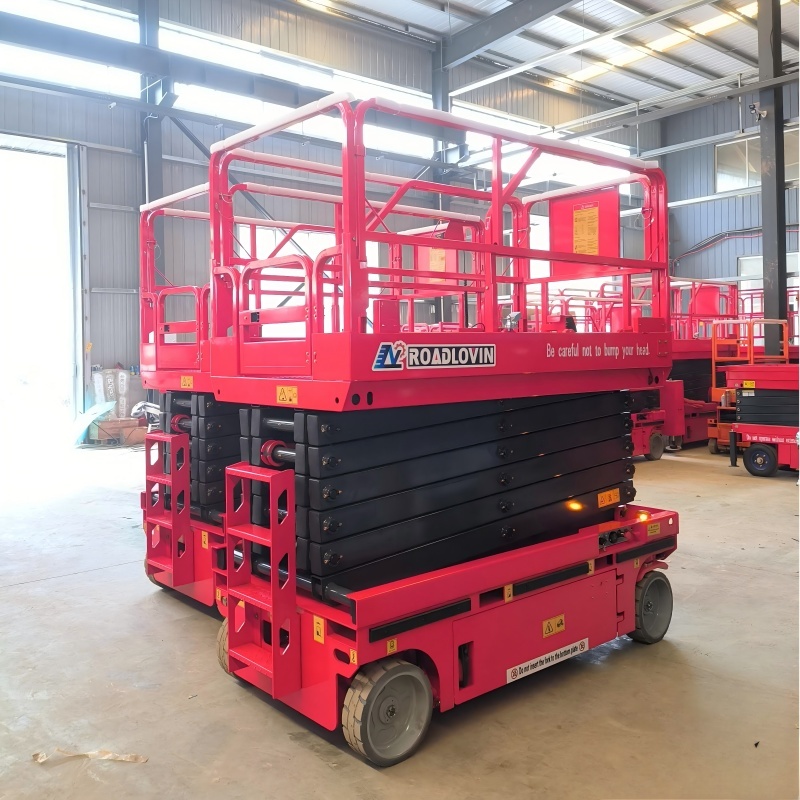

Scissor Lift 4-14 m Platform Lifting Height | Scissor Lift Manufacturer, Scissor Lift for Sale
When your project demands safe, swift and reliable vertical access, the Scissor Lift 4-14 m Platform Lifting Height engineered by a leading scissor lift manufacturer is the one machine that replaces ladders, scaffolding and costly manpower. From 4 m indoor maintenance to 14 m façade work, this scissor lift platform delivers precision, stability and zero emissions in a single, easy-to-tow package. Available now as scissor lift for sale or rental worldwide, it is quickly becoming the default choice for contractors, facilities managers and industrial users who need to “get up there” without drama or downtime.
What the Scissor Lift 4-14 m Does
A scissor lift uses a linked, folding support mechanism that elongates as it raises—hence the “scissor” name. Powered by maintenance-free AC or DC motors, the platform rises vertically to provide a level, spacious deck for operators, tools and materials. Unlike boom lifts, the deck stays horizontal throughout the entire 4-14 m arc, eliminating the need to tie-off or rebalance loads. The result is a rock-steady workspace that lets teams concentrate on the job instead of the machine.
Core Functions & ControlsProportional lift & descent – fingertip control from both platform and base; 24 V circuit for shock-proof safety.

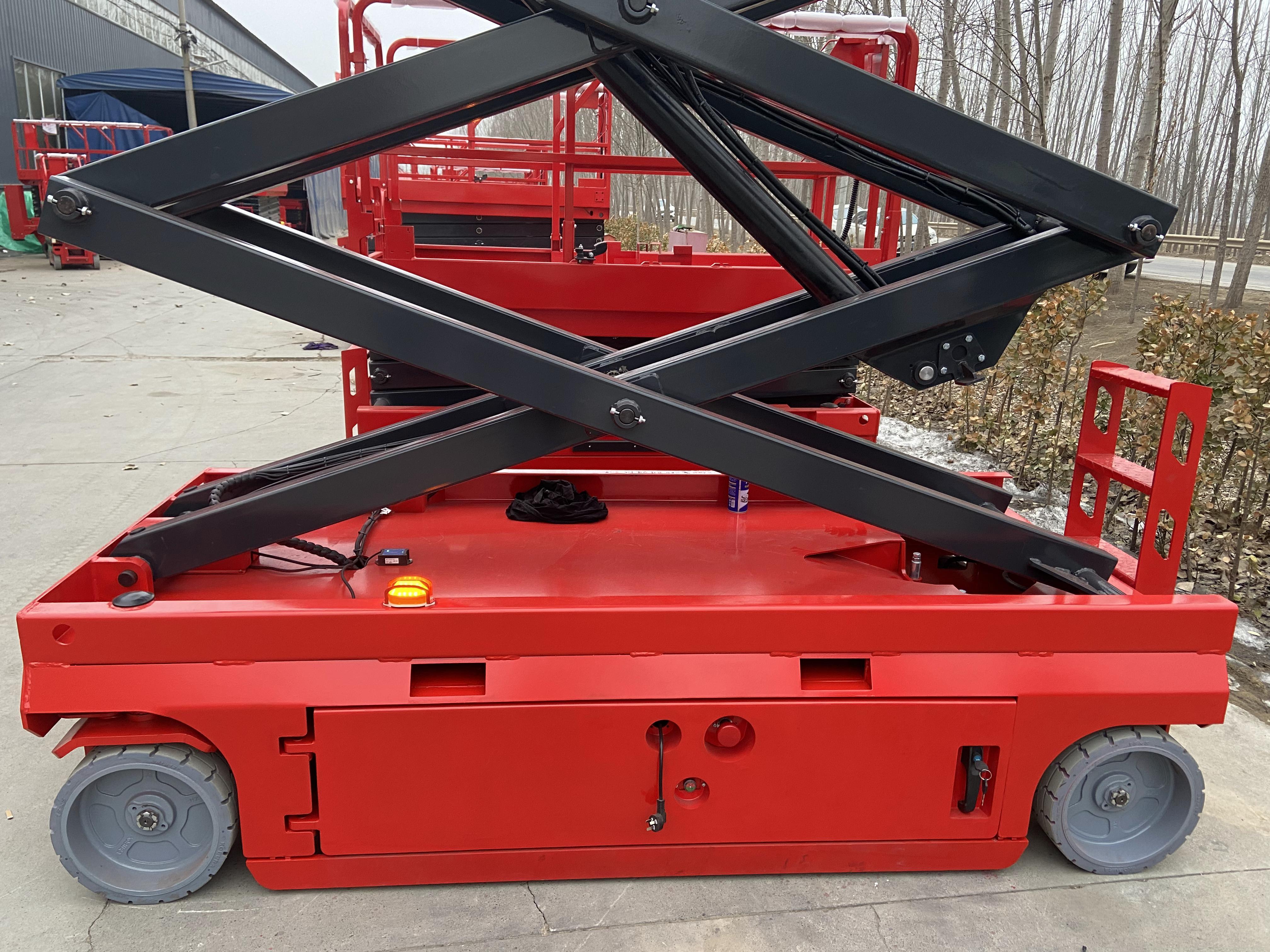

Self-locking scissor arms – mechanical safety pins engage automatically if hydraulic pressure drops.

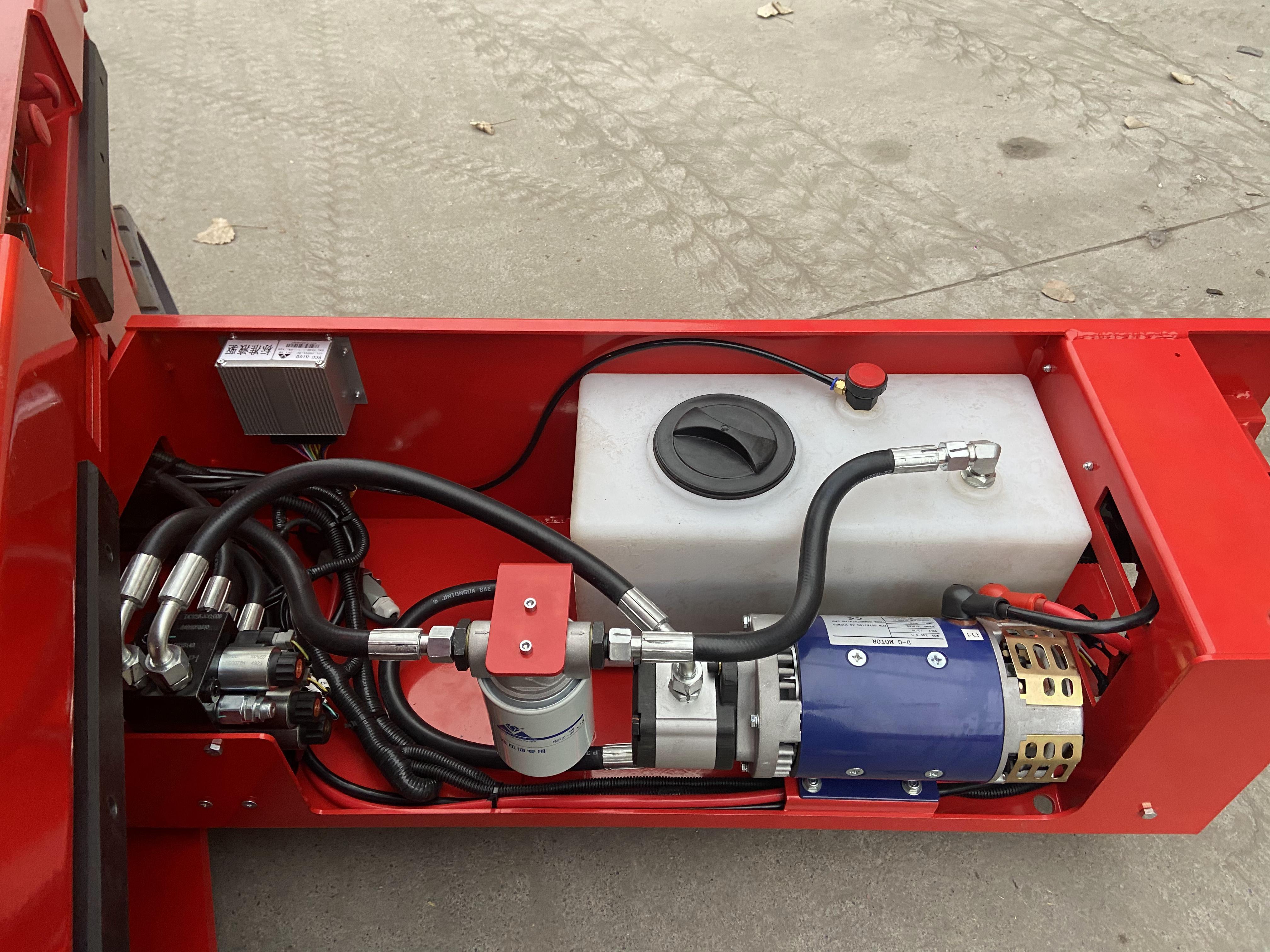

Hydraulic differential – smooth acceleration even at full 350 kg rated load; no jerky movements that spook inexperienced operators.
Zero inside turning radius – drive at full height through 0.3 m inside radius, perfect for narrow warehouse aisles or hotel corridors .
Extension deck – 0.9 m roll-out adds 40 % usable area for reaching over fixed obstacles such as conveyor belts or parapet walls .
Smart charger – 110–240 V universal input; 8 h overnight charge gives a full shift of 60–80 cycles depending on load.
Quick Spec Summary
-
Lift type: Mobile, self-propelled scissor lift platform
-
Lifting range: 4 m to 14 m platform (6 m to 16 m working)
-
Drive: 24 V DC permanent magnet, 2-wheel front drive
-
Speed: 0.8 km/h elevated, 3.8 km/h stowed
-
Gradeability: 25 % (14°) with pothole guards deployed
-
Controls: Proportional joystick + push-button emergency stop, both decks
-
Safety: Tilt sensor 1.5 ° alarm / 3 ° cut-out, overload 110 % lock-out, manual descent valve, forklift pockets, crane eyes
Technical parameterBelow is a detailed specification table for our standard hydraulic scissor lift platforms:
