Skid-steer planers | Planers for Skid Loader Attachment

Product Overview

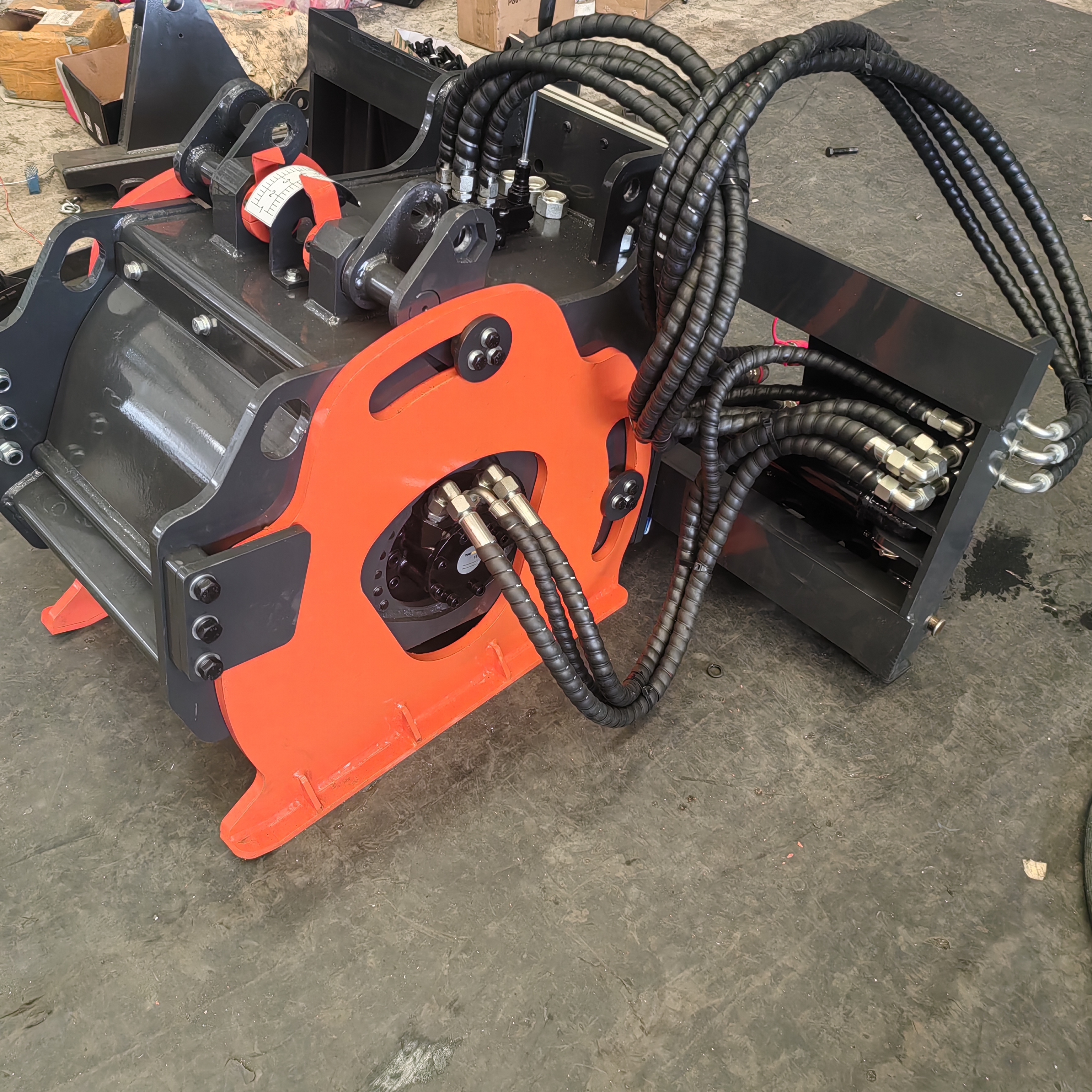

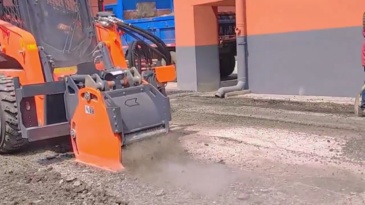

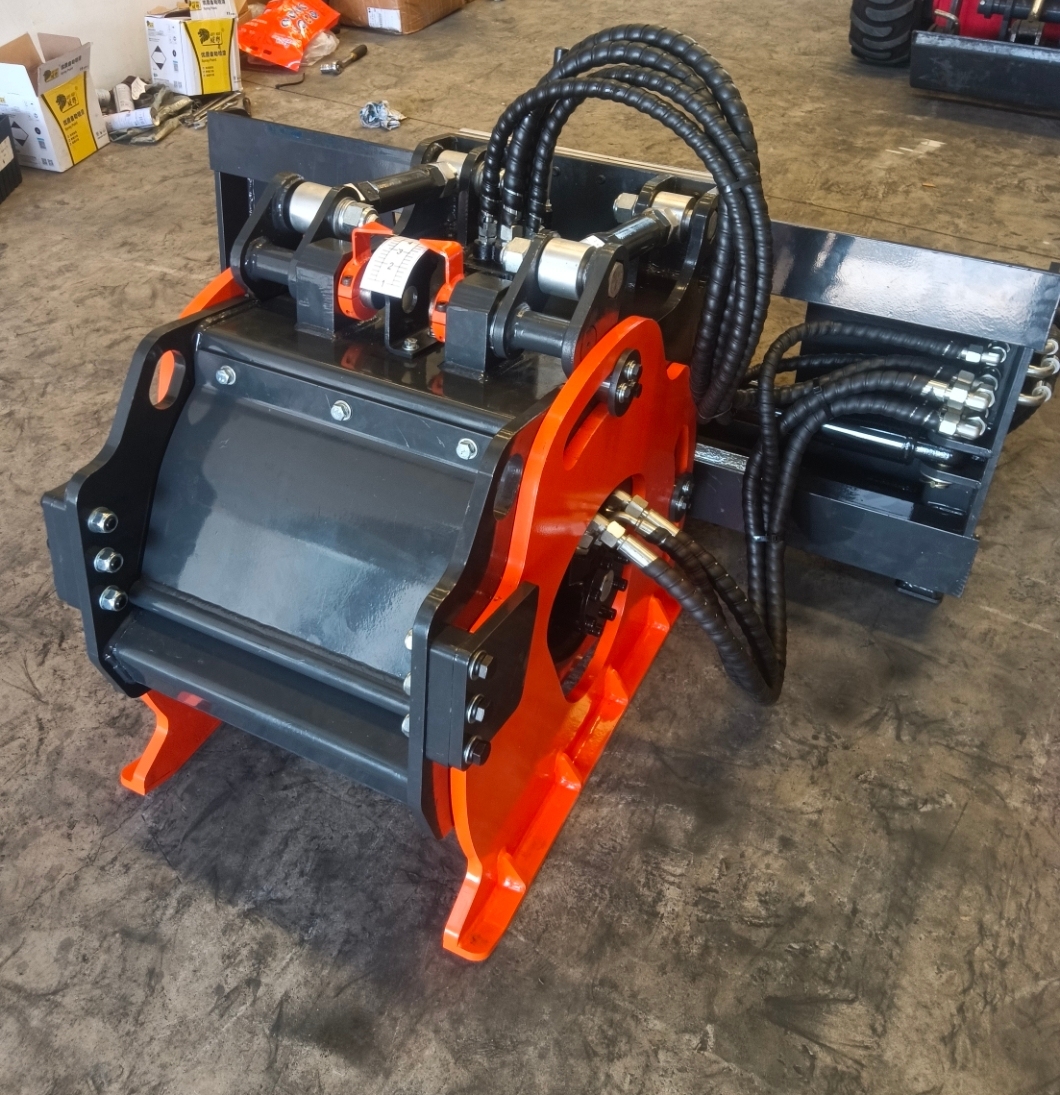

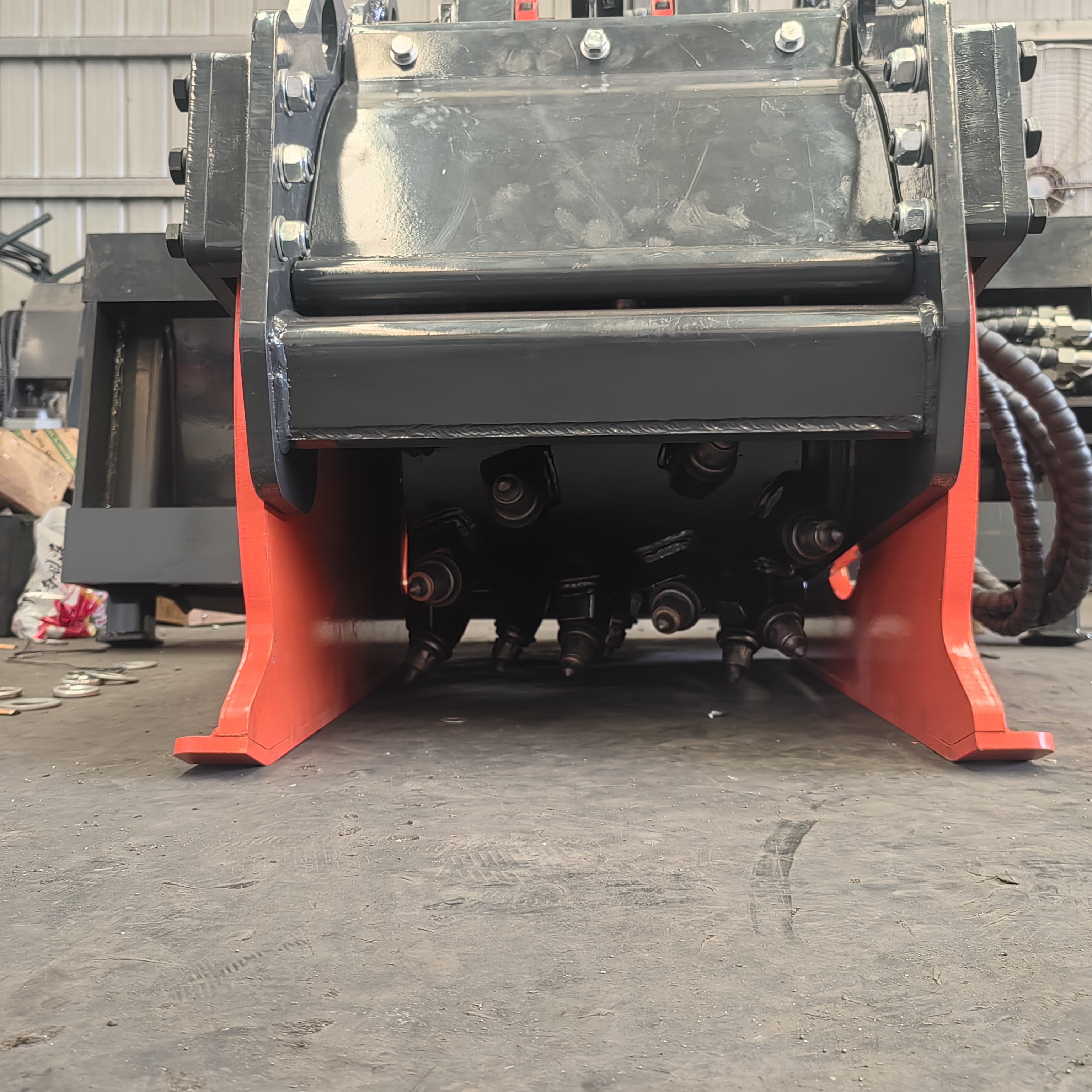

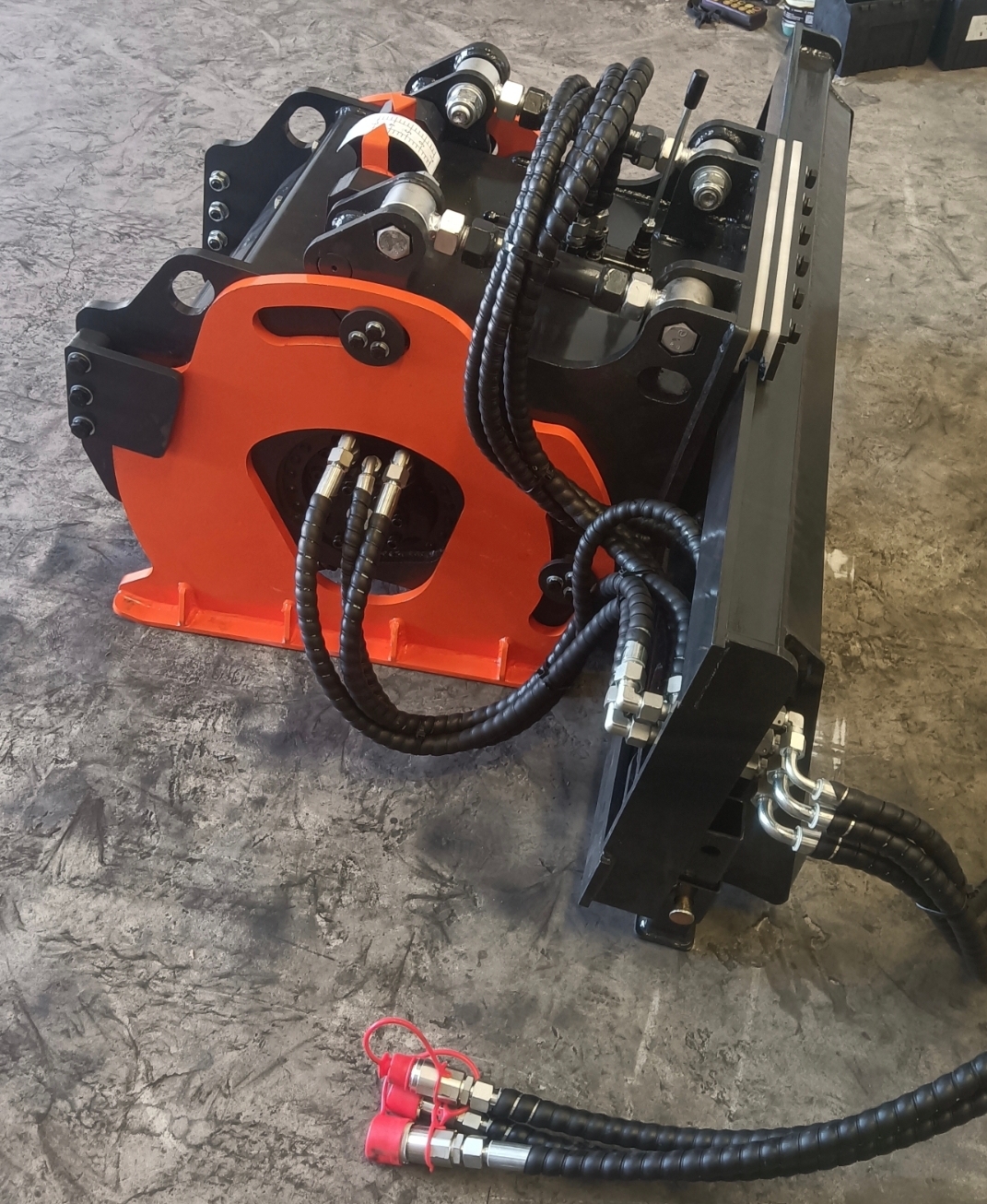

A skid steer planer attachment for asphalt road milling turns the loader you already own into a compact cold milling machine. The cutting drum runs inside a welded steel housing that bolts to the loader's quick-attach plate, and the carrier's own hydraulics drive it, so there is no second engine, no separate fuel supply and no extra machine to transport. Fit the unit, set the depth, and you are cutting pavement in about the time it takes to swap any other attachment.

The people who get the most from it work on the road itself: paving and patching crews squaring off failed asphalt, municipal maintenance teams cutting around utility covers and curb lines, contractors levelling high spots in car parks and site roads before an overlay. Because it runs on standard skid steer hydraulics, it fits the same carrier that already carries the bucket, the forks or the breaker, so the work stays in your own fleet instead of going out to a specialist hire.

Day to day the planer is a controlled cut rather than a demolition job. You set the depth for the pass, check the tilt so the drum runs square to the surface, and work in lanes. That is what makes a repair last: the milled area finishes flush with the surrounding road, with a clean textured profile that new material bonds to, instead of a feathered patch that lifts within a season.

Two numbers decide how well the attachment suits you — the cutting width you order and the depth the drum will hold in a single pass. Both are covered below, along with the loader requirements, the widths available and how the drum and teeth are kept sharp. Tell us the loader you run and the work in front of you, and we will confirm the configuration that matches.

Key Features

• One pass instead of several — rutting, failed patches and worn surface layers come out in a single controlled cut, which cuts labor time and the hours your crew spends standing in live traffic.
• Edges that finish clean — the drum housing shifts sideways and re-centres on the carrier, so curb lines, utility covers and trench edges come out straight without a hand saw following behind the machine.
• Depth and tilt set independently — the operator can match an existing grade and hold one profile across a whole lane instead of chasing it pass by pass.
• Built for milling conditions — heavy-duty sealed bearings and a pressurized lubrication system keep the drum turning through the dust and vibration that shorten the life of lighter attachments.
• Spoil handled as you cut — a rear-loading conveyor, in standard or swing configuration, puts milled material straight into a truck or trailer.
• Joins the fleet you already run — this skid steer planer attachment for asphalt road milling uses the loader's own quick-attach plate and high-flow hydraulic circuit, so one unit can be shared between machines rather than tying up a single carrier.
• Configured before it is built — cutting width, tooth set and conveyor arrangement are agreed with you before assembly, the way a skid loader planer attachment factory builds to a fleet specification rather than shipping one fixed size.

Specifications

Setup and First Cuts

1. Check the carrier first. Confirm the loader's quick-attach coupler and its hydraulic flow and pressure against the planer's requirement — this is the one check that decides whether the attachment will hold working depth in your ground conditions.
2. Park on firm, level ground with the loader arms lowered and the engine off, and release the hydraulic pressure before touching the couplers.
3. Latch the skid steer planer attachment for asphalt road milling onto the quick-attach plate and lock the pins, then check that the unit sits square and the mounting bracket is fully seated.
4. Connect the hoses with the machine off, leaving the spiral guards in place so the lines cannot rub through against the housing as the loader moves.
5. Start the carrier at low idle and check the fittings for leaks or weeping before taking the drum anywhere near the surface.
6. Set the depth control to zero and lower the drum onto the surface, then confirm the housing centres itself behind the loader as you move forward.
7. Make a short test cut, measure the profile across it, and adjust tilt and depth before committing to a full lane.

Typical Job Applications

• Pothole patching and joint repair — the everyday job for the planer: cut clean edges around the failure, mill out the damaged surface, and the repair takes new material with a proper bond instead of a feathered patch that fails again.
• Trench reinstatement — once a utility trench is backfilled, mill the surrounding surface so the new asphalt finishes flush with the road rather than standing proud of it.
• Lane widening and overlay preparation — take the surface down across the widening strip and along the lane edge so the new layer ties in at the right level.
• Curb lines, covers and bridge joints — run the planer tight along curbs and around manhole covers, drainage grates and expansion joints, where a larger milling machine cannot position itself.
• Concrete preparation — the same drum takes the surface down on concrete slabs, aprons and loading areas ahead of repair or resurfacing.
• Markings, ruts and failed surface treatments — strip lane markings, shave out ruts and remove failed slurry seal or old patching before a new surface goes down.
• Car parks, footpaths and site roads — level high spots and take out trip hazards in confined spaces that a ride-on miller cannot reach.

Cutting Width and Milling Depth

The width you choose is mostly a question of access and coverage. A narrow drum lets the skid steer cold planer work inside a trench line, between curbs or alongside a wall, and it keeps the load light enough for a mini loader to handle comfortably. A wide drum covers more ground on every pass, which is what you want on lane milling, car park resurfacing and long overlay preparation, but it also asks more of the carrier's hydraulic system.

Depth behaves differently. The drum reaches deeper in soft, warm asphalt than in cold, heavily compacted material, and the condition of the teeth has as much to do with the achieved depth as the setting on the control. Where a job needs more removal than one pass allows, two shallower passes usually leave a better profile than forcing the first cut — and they put far less strain on the loader.

Match the width and the depth to the carrier before anything else. A machine with a high-flow circuit can run a wider drum at working depth; a standard-flow loader is better served by a narrower drum and lighter cuts. The coupler and the hydraulic connections are the other details worth confirming early, because they decide whether one planer can be shared across several loaders in the same fleet.

Think about access as well as output. The planer earns its place because it reaches work a ride-on milling machine cannot: inside a multi-storey car park, along a narrow footpath, up against a curb that has to stay open to traffic. A narrower drum that fits the job beats a wider one that has to be manoeuvred into position by hand.

Drum and Wear-Part Service

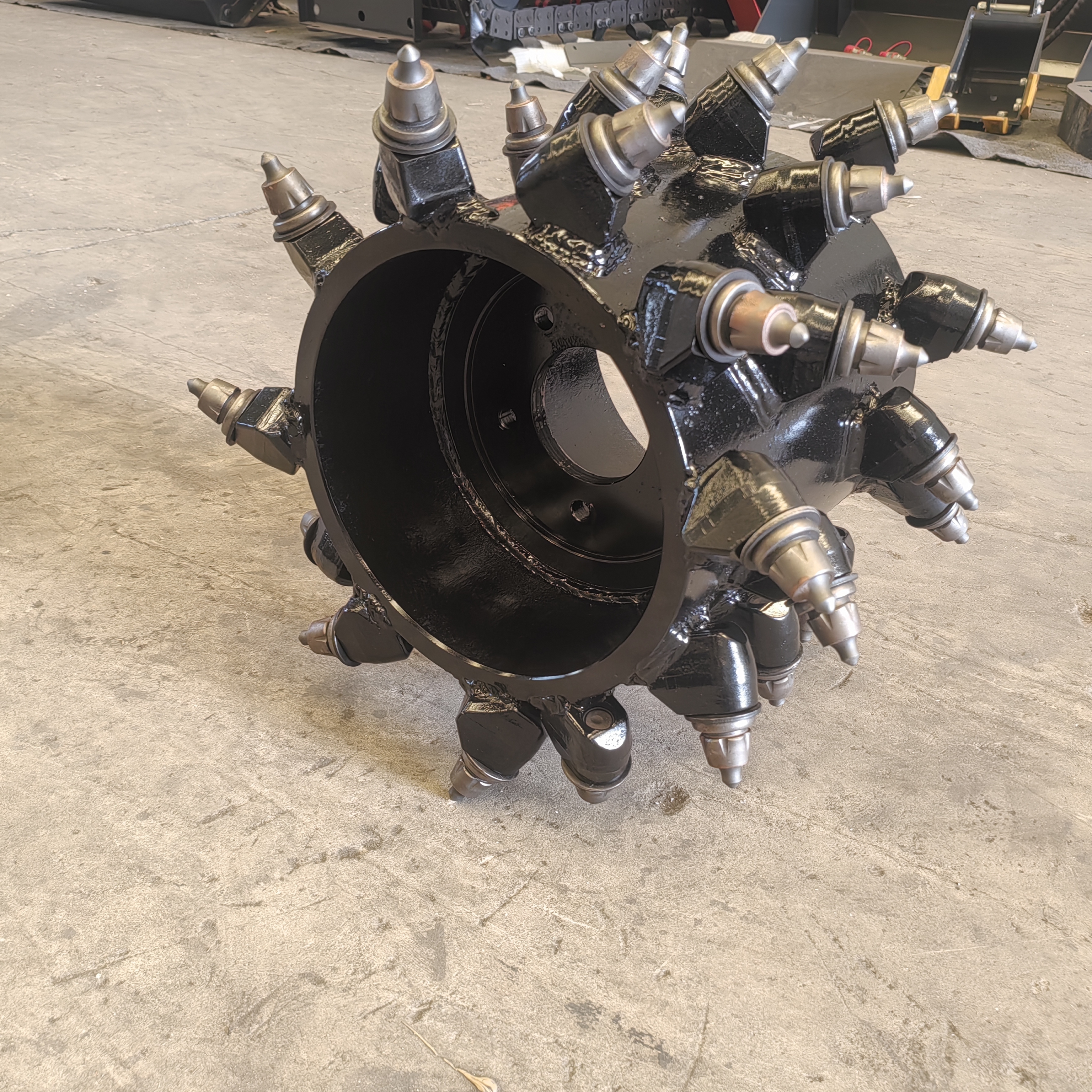

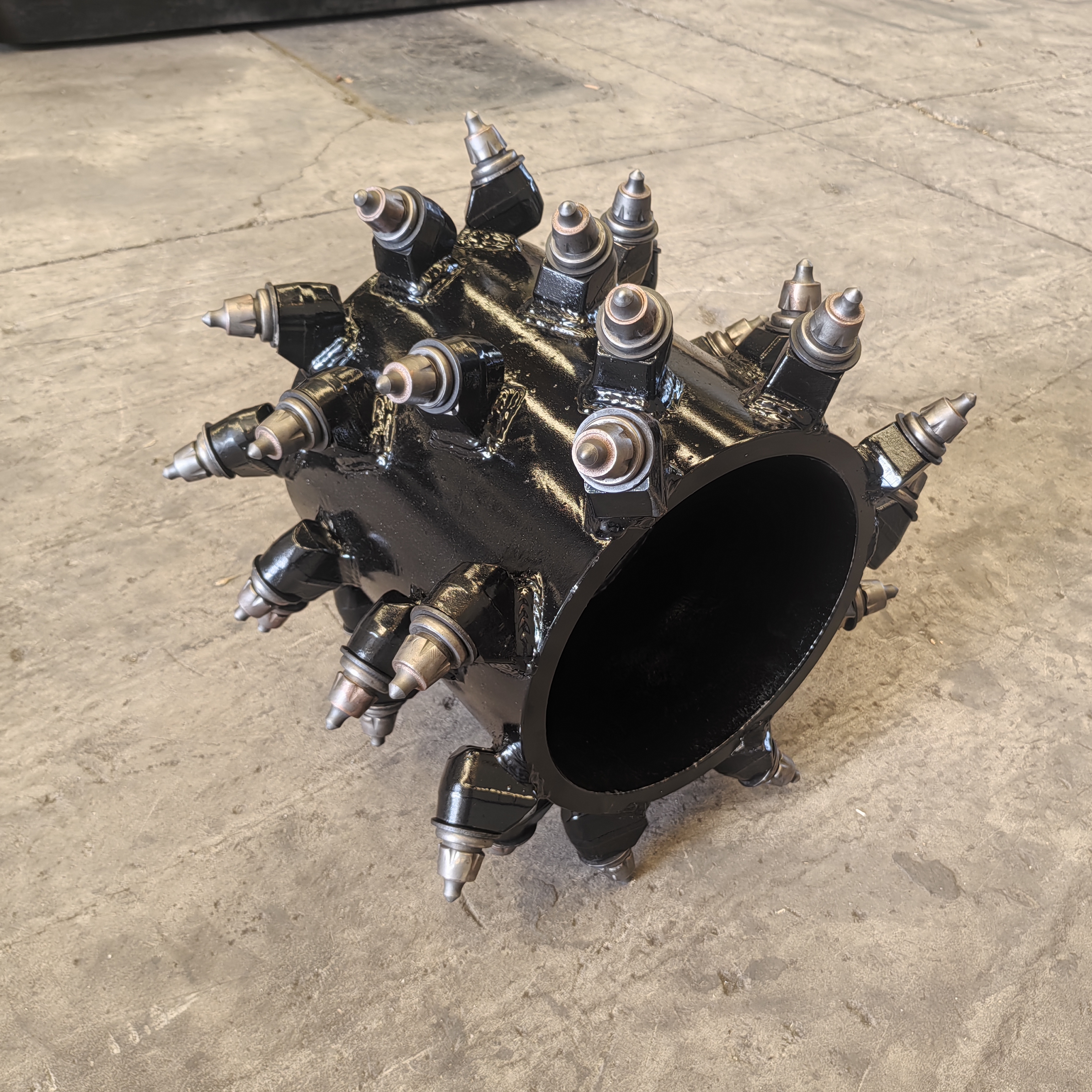

1. Walk round the drum at the start of each shift and check the teeth — a chipped or missing tip caught early saves the tooth holder behind it.
2. Replace teeth as they blunt rather than running them out. A tired cutting edge is the most common reason a planer stops holding depth, and teeth are the cheapest part of the machine to put right.
3. Clean the tooth holders and re-seat each tooth properly, so the drum stays balanced and the cut stays even across the full width.
4. Keep the lubrication system topped up and watch the area around the bearings for weeping or play — dust and vibration are what shorten the life of the drum assembly.
5. Check the conveyor, hose runs and guards before each working day, and look for anything rubbing against the housing.
6. Keep spare teeth and wear components in the workshop, ordered from the same skid loader planer attachment factory that builds the unit, so a worn drum is re-toothed in an afternoon rather than waiting on a shipment.

Ordering, Delivery and Support

Supply Chain & Delivery Assurance

Lovin (Jining Lovin Construction Machinery Co., Ltd.) has supplied machinery buyers since 2017 as a distributor, sourcing through authorised channels and a verified supplier network. One order can cover the machinery mix your customers ask for and leave as a single consolidated shipment. Stocked items dispatch within about 7 days; lead times are confirmed against availability at enquiry, and busy-season schedules are agreed with suppliers in advance. OEM and customised builds follow the same route, and spare and wear parts stay supported after delivery. We export to Europe, South America, the Middle East, Australia, New Zealand and Russia.
