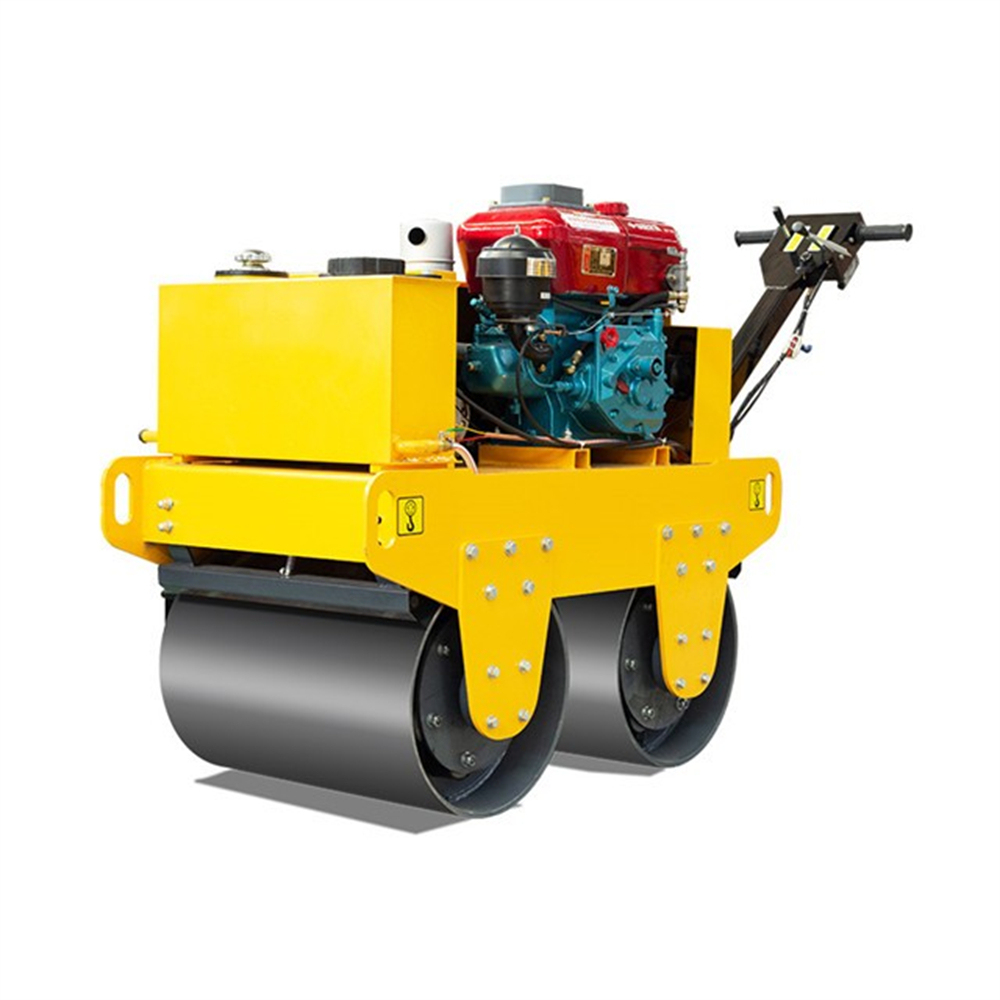

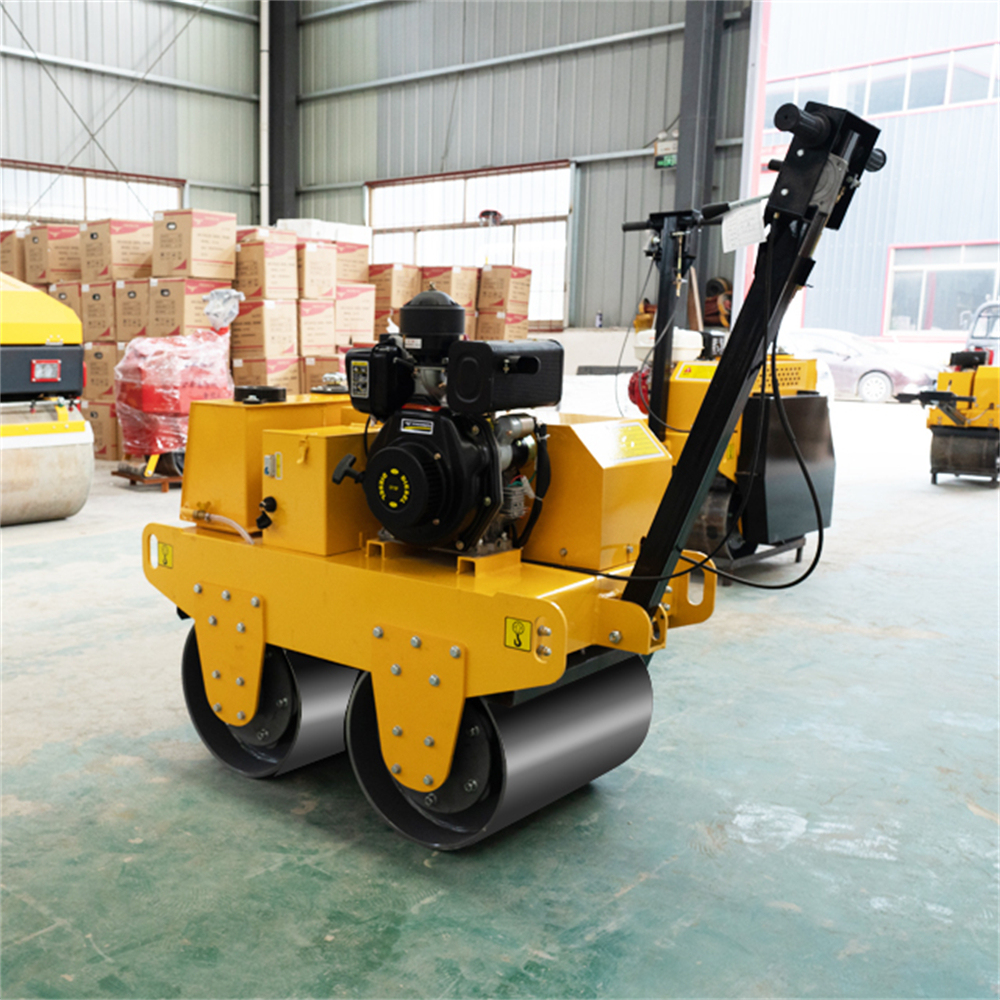

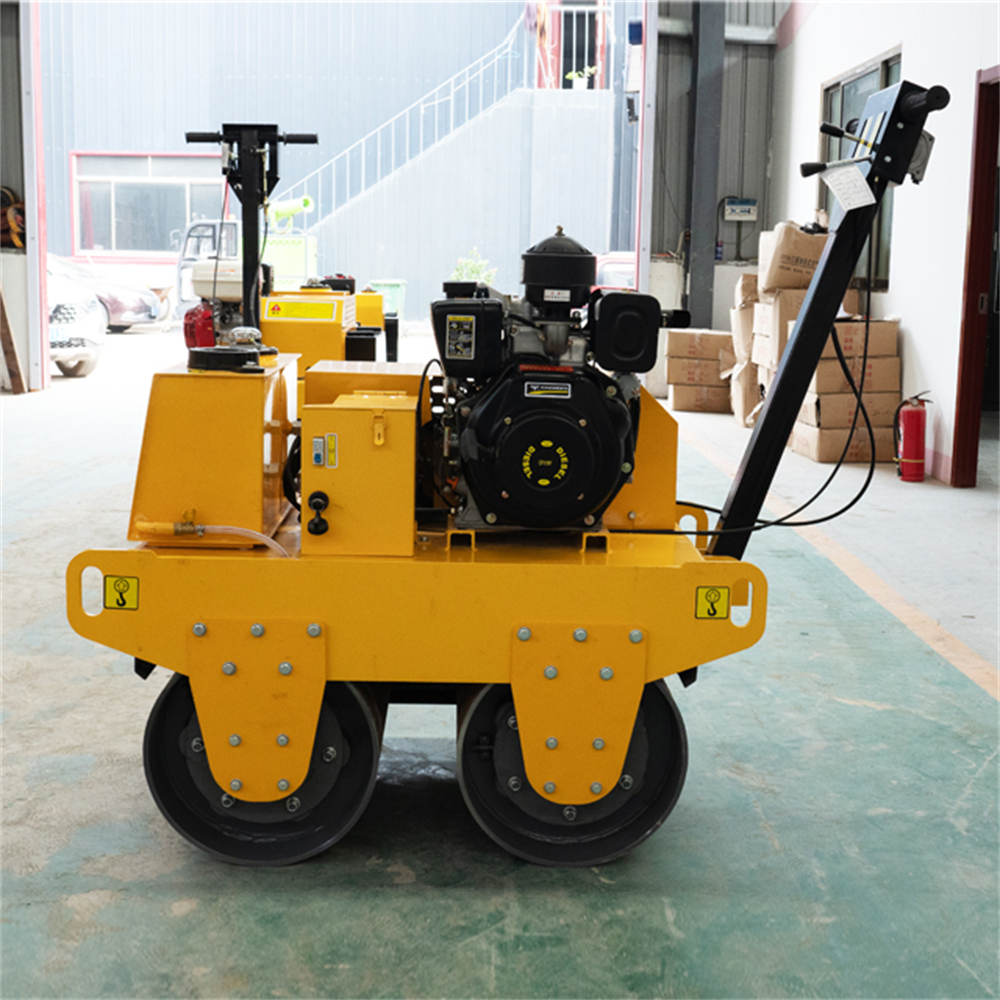

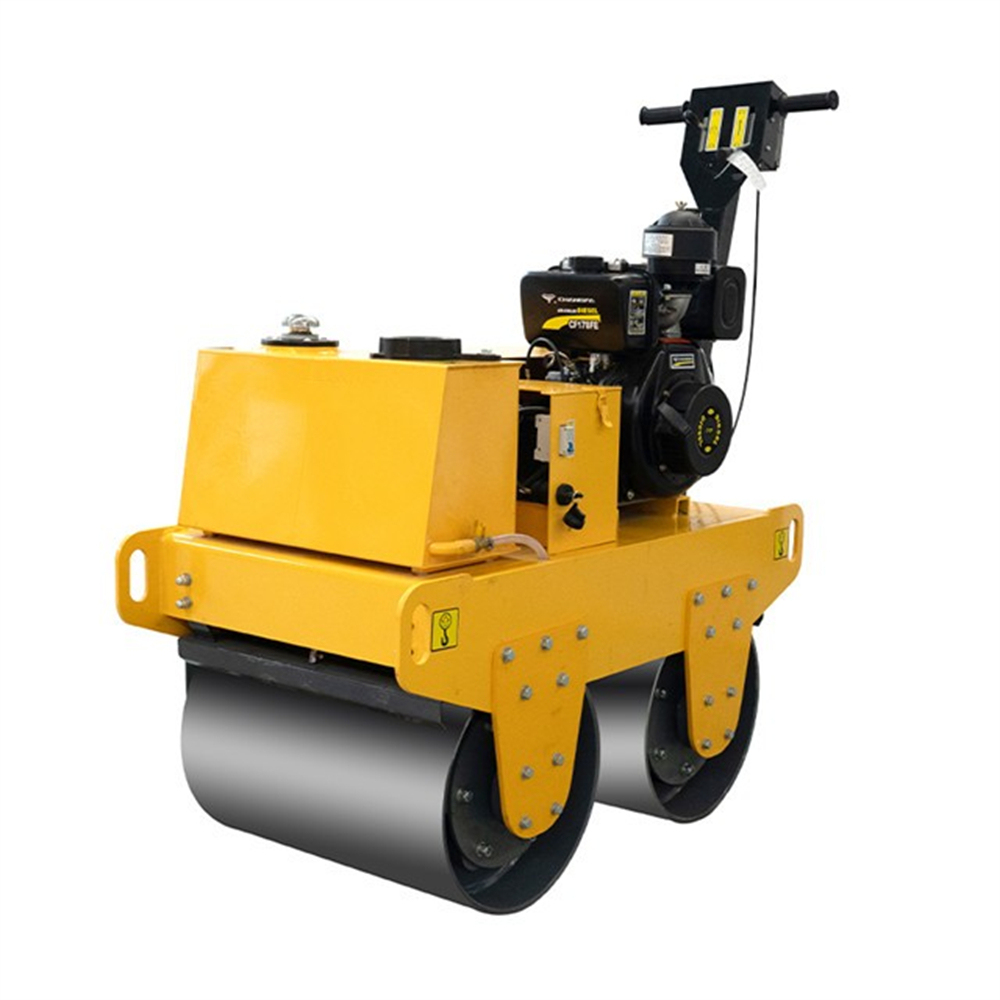

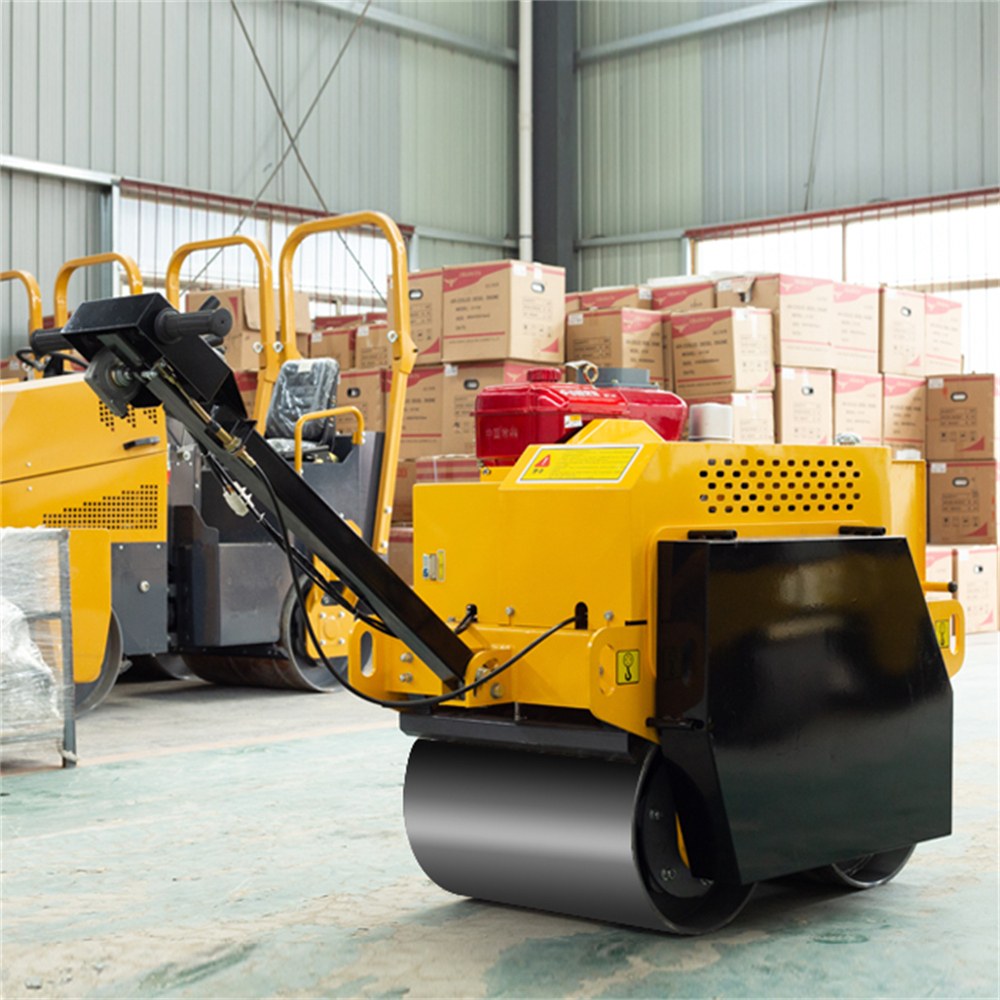

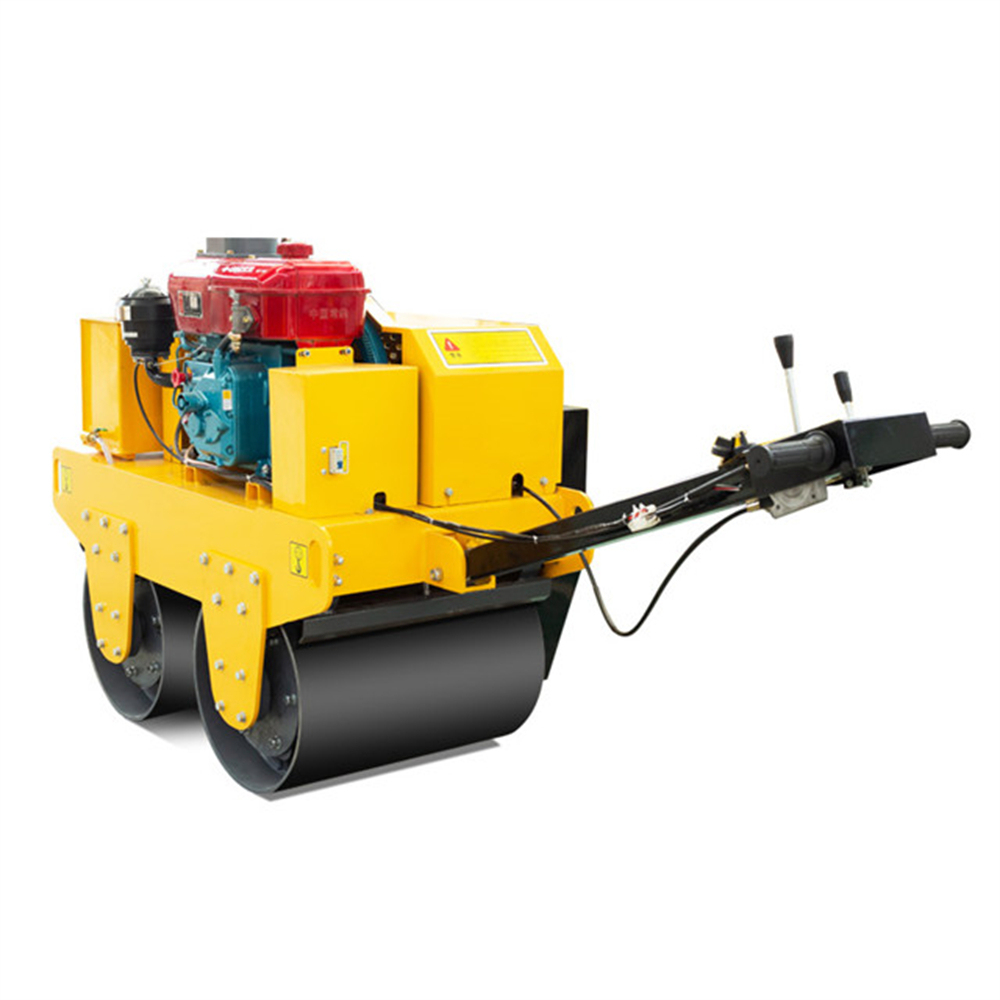

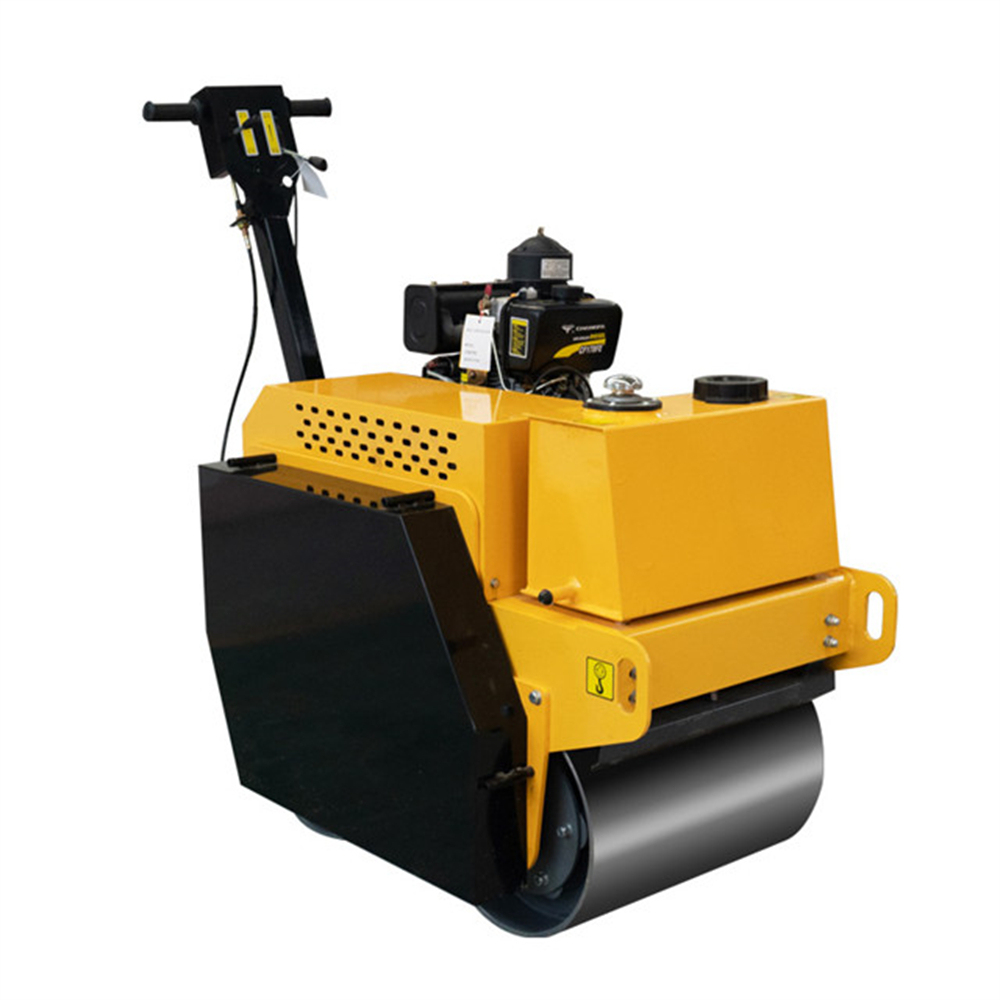

Walk behind double drums vibratory road roller YLS600B/ 700
The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
Main Features
Walk behind double drums vibratory road roller YLS600B/ 700
The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
Main Features
|
Type |
LN-YLS600B/ 700 |
|
|
Run |
Speed |
0-4km/h |
|
Climbing capacity in theory |
30% |
|
|
Compaction |
Static load forward/ back |
36N/cm |
|
Nominal amplitude |
0.5mm |
|
|
Vibration frequency |
70Hz |
|
|
Exciting force |
20kN*2 |
|
|
Water tank volume |
25L |
|
|
Working |
Drive |
Hydraulic pump & motor |
|
Vibration |
Automatic clutch, double wheels |
|
|
Engine |
Model |
Changfa CF178F/180F |
|
Starting mode |
Electric starting |
|
|
Type |
Diesel engine, air cooled, 4 stroke, single cylinder |
|
|
Power |
6.0hp/ 6.5hp/3600rpm |
|
|
Fuel tank volume |
3.5L |
|
|
Fuel consumption |
280g/kWh |
|
|
Dimension |
Width of steel wheel |
600mm/700mm |
|
Diameter of steel wheel |
426mm |
|
|
Total length |
2450mm |
|
|
Total width |
850mm |
|
|
Total height |
1800mm |
|
|
Packing size |
1350×950×1250mm |
|
|
Weight |
Working weight |
750kg |
