Ride on Vibratory Road Roller 1-3ton

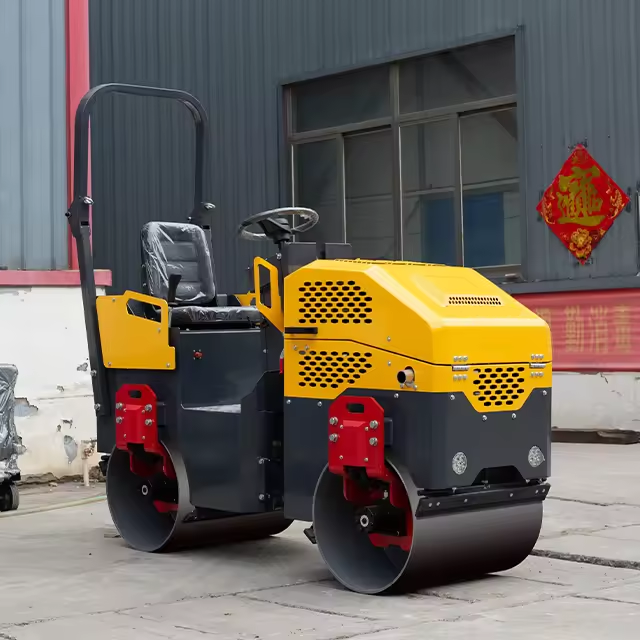

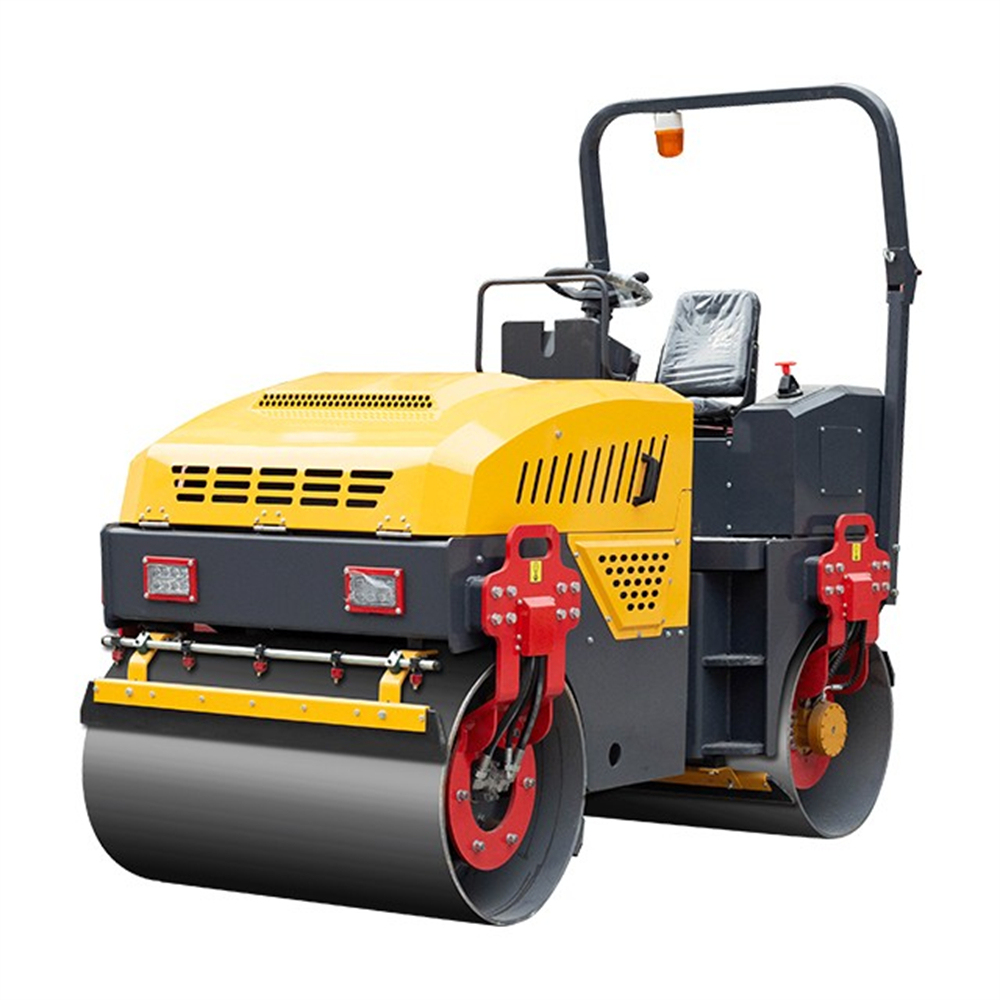

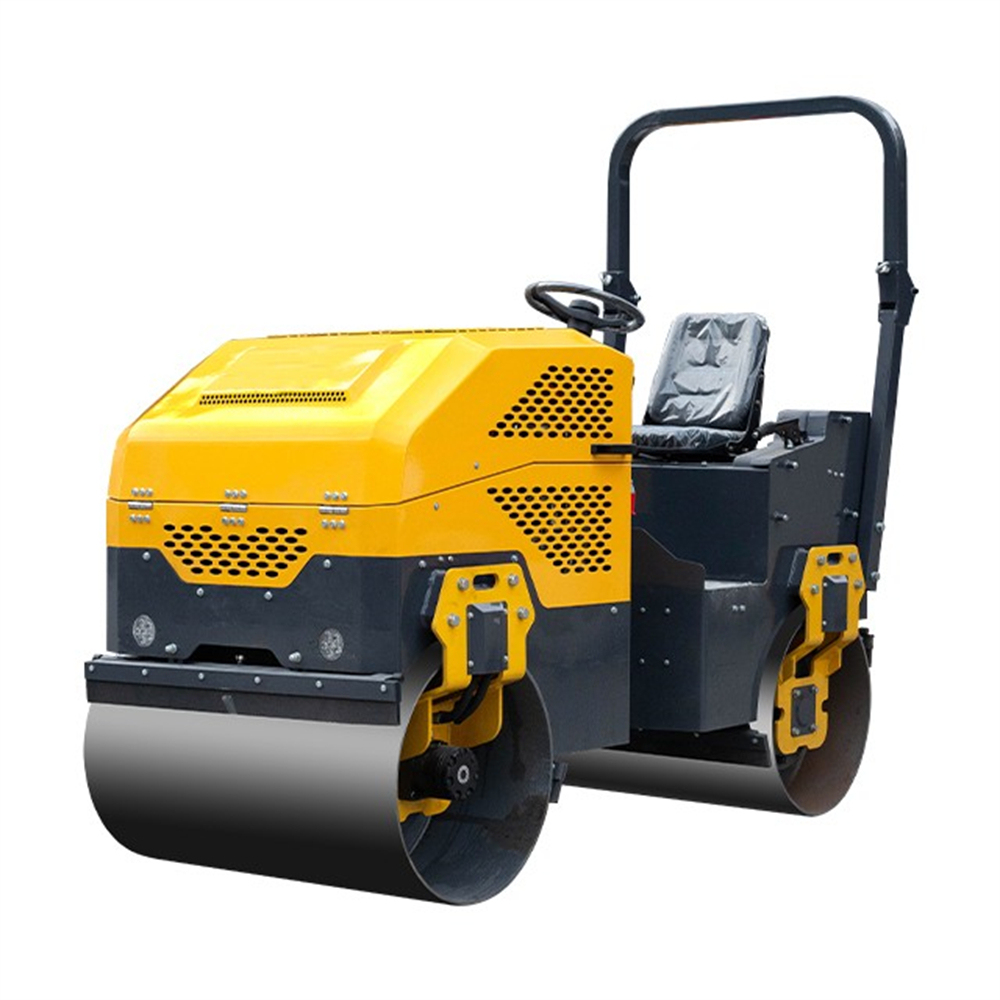

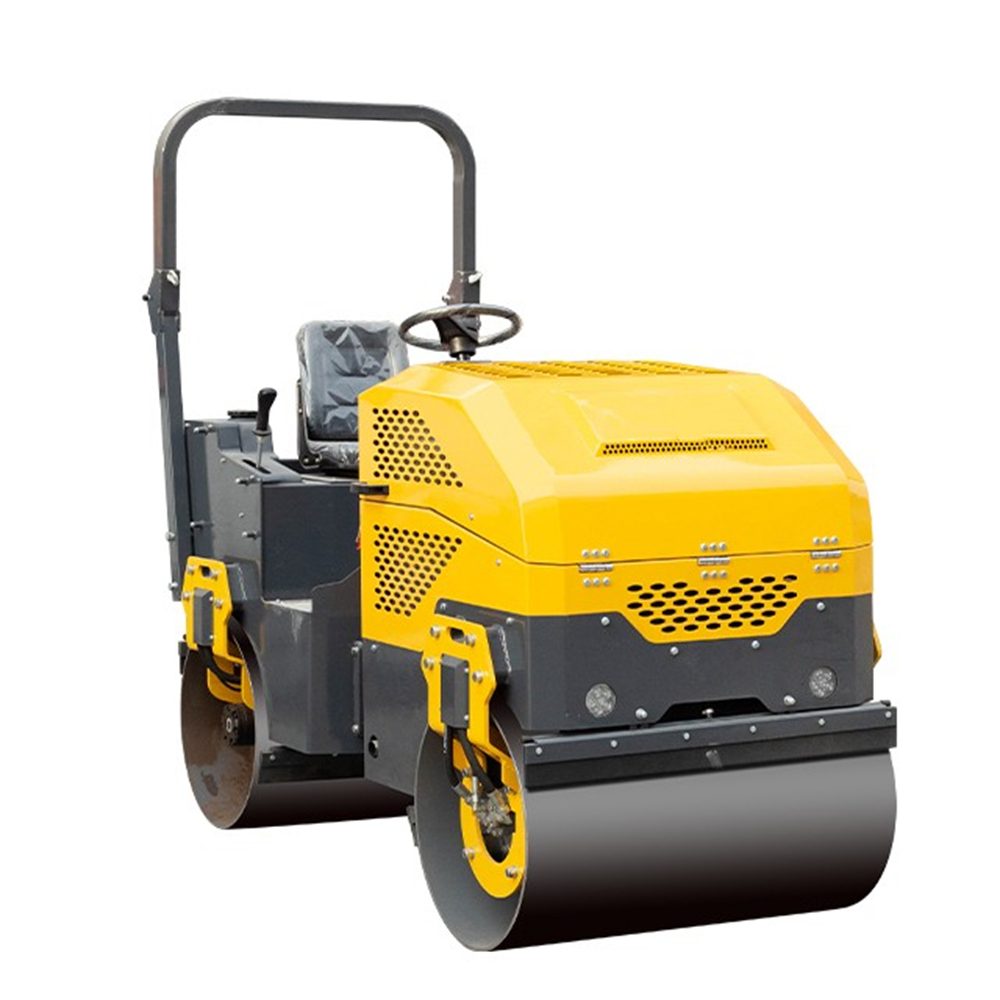

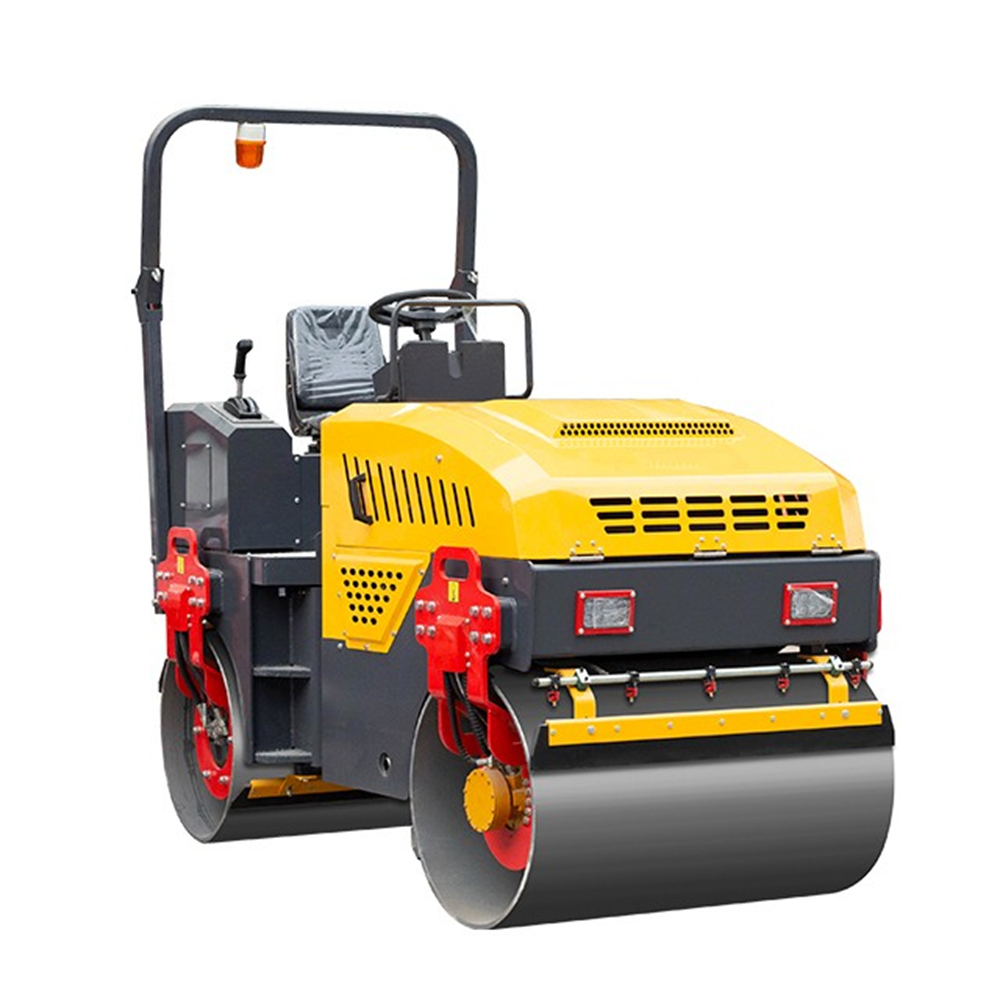

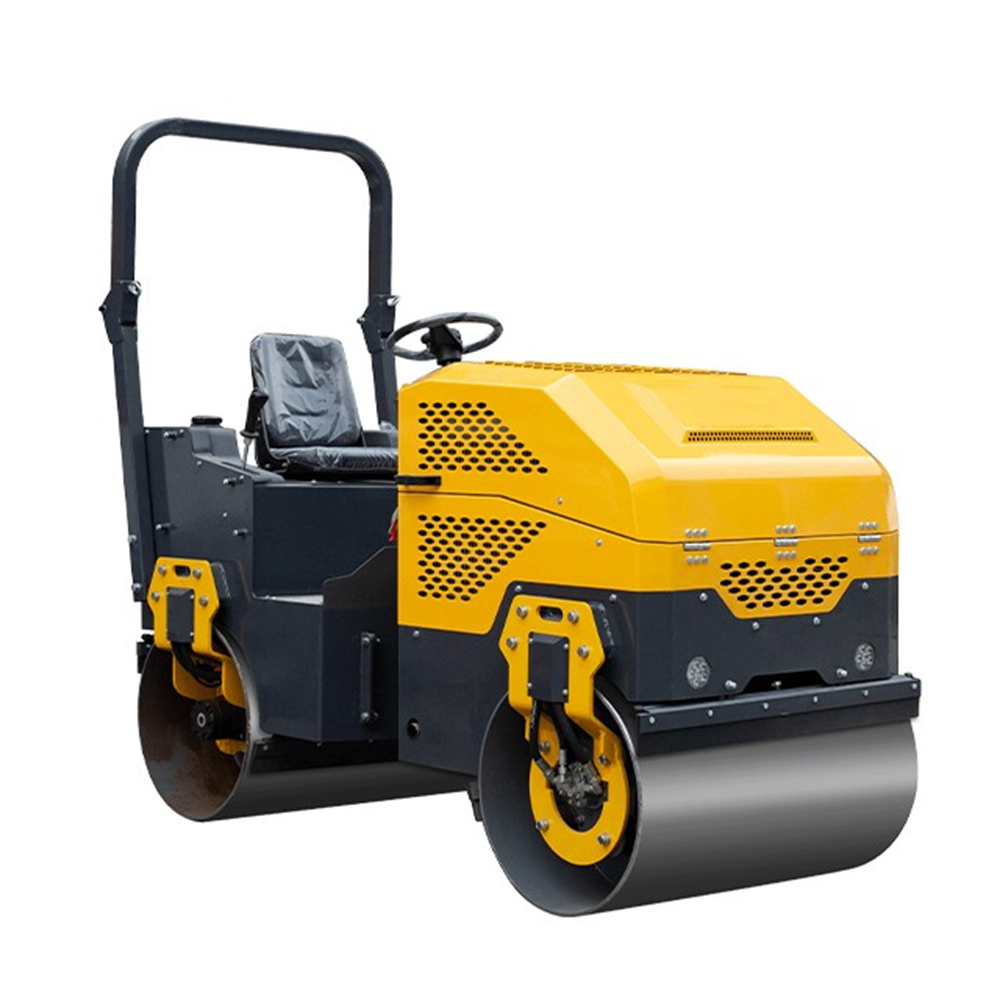

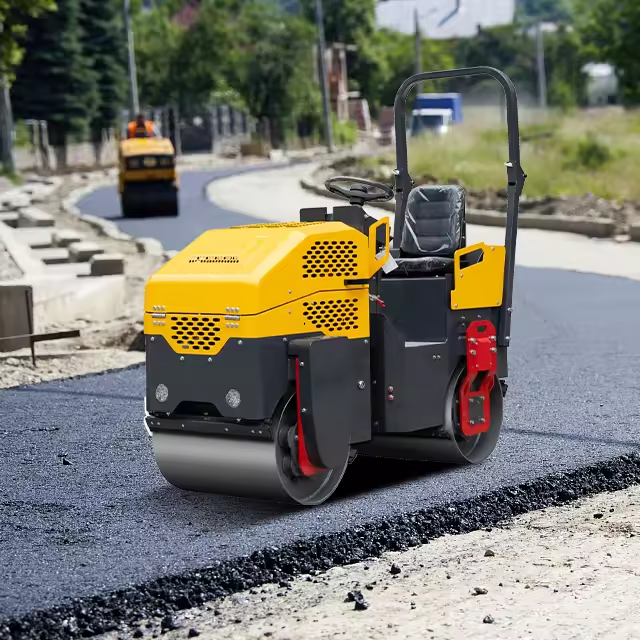

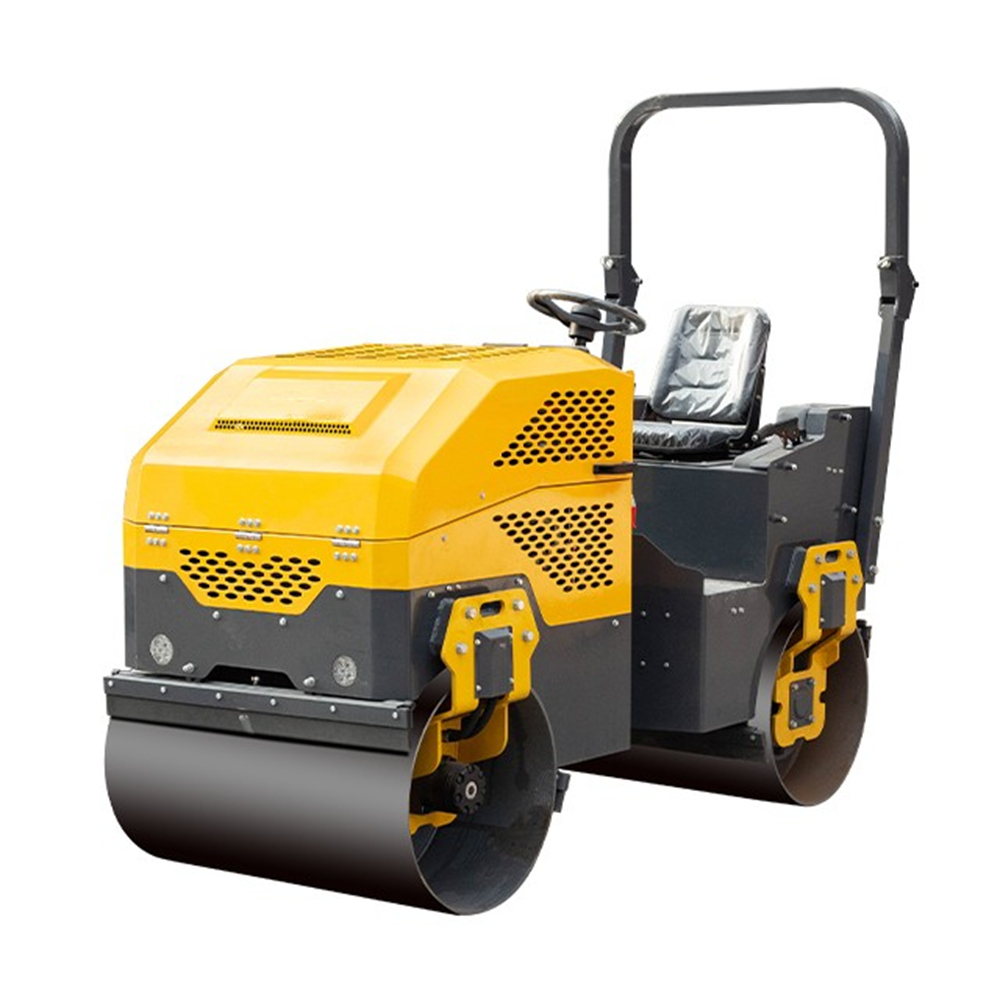

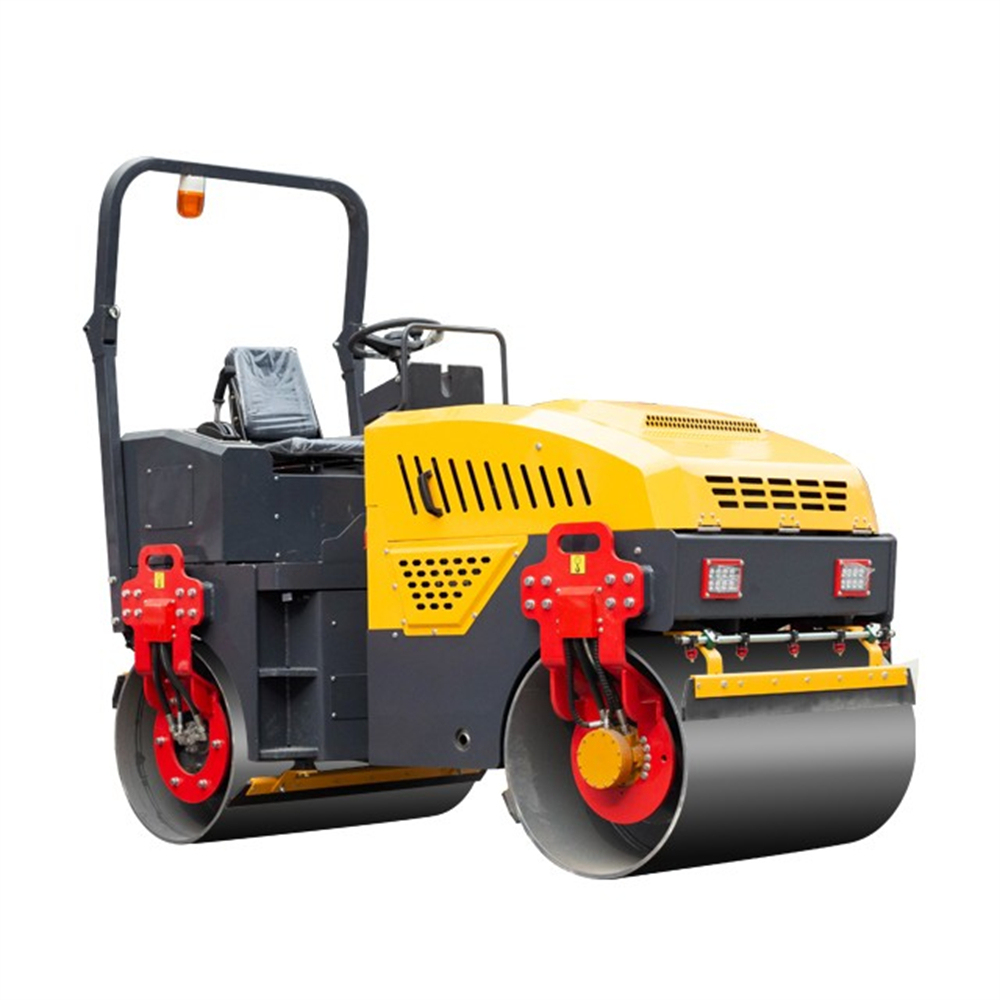

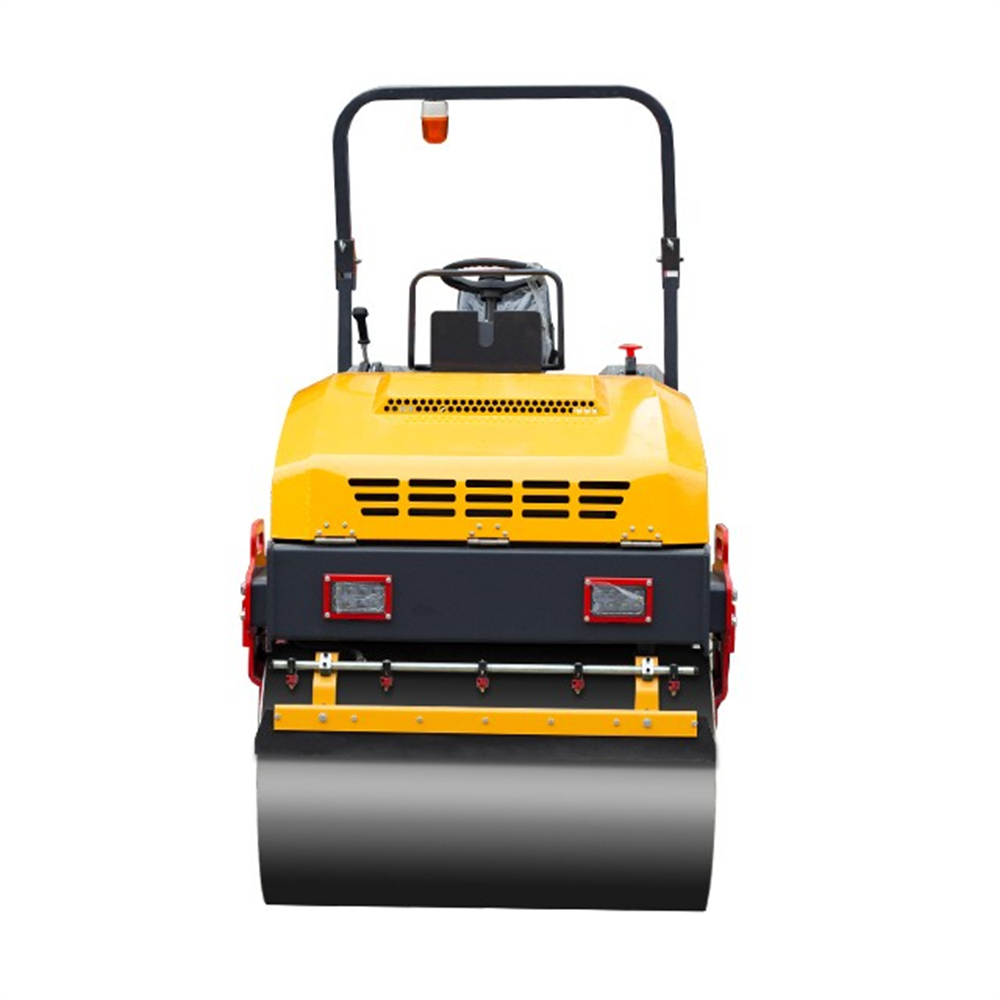

2 ton Ride-on Hydraulic Vibratory Road Roller LN-YLJ1000

Main Features

1. Fully hydraulic roller, double motors drive, hydraulic steering,and single or double vibration, good performance, easy operation.
2. With famous Engine Changchai diesel 3 cylinder, water cooled engine, strong power supply.
3. lmported SAUER-Danfoss hydraulic variable plunger pump, supply power for the stable hydraulic system.
4. Double cycloid hydraulic motors drive the machine walking.
5. Steel drum vibrating is driven by brand motor and button controlled. (And double vibration is optional.)
6. The front and rear drum articulated connected, hydraulic steering.
7. Electrically controlled water-spray, high efficient and water-saving.
8. With NSKbearings, ensure the machine with good performance
9. With safety Foldable ROPS.
10.  With LED lamps in front and rear, high efficiency.

11. Type		LN-YLJ1000
    Run	Speed	0-12km/h
    	Turning radius	2000mm
    	Climbing capacity in theory	30%
    Compaction	Static load forward/ back	80/85N/cm
    	Nominal amplitude	0.6mm
    	Vibration frequency	75Hz
    	Exciting force	30kN
    	Water tank volume	100L
    	Hydraulic oil tank volume	60L
    Working	Drive	Variable plunger pump, hydraulic motor double drive
    	Vibration	Front drum / Double drums hydraulic motor vibration
    	Turning	Hydraulic steering
    Engine	Model	Changchai ZN390B
    	Starting mode	Electric starting
    	Type	Diesel engine, water cooled, 4 stroke, three cylinder
    	Power	39hp/2600rpm
    	Fuel Consumption	240g/kWh
    	Fuel tank volume	36L
    Dimension	Width of steel wheel	1000mm
    	Diameter of steel wheel	610mm
    	Machine size	2300x1120x1700mm
    	Packing size	2500×1200×1750mm
    Weight	Working weight	1980kg
